RN5RZ - LOW DROPOUT AND LOW NOISE VOLTAGE REGULATOR

Nisshinbo

The RN5RZ by Nisshinbo is a LOW DROPOUT AND LOW NOISE VOLTAGE REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

RN5RZ LOW DROPOUT AND LOW NOISE VOLTAGE REGULATOR by Nisshinbo - Datasheet Preview — Official preview page of the **RN5RZ** LOW DROPOUT AND LOW NOISE VOLTAGE REGULATOR datasheet (Nisshinbo).

Datasheet Details

Part number	RN5RZ
Manufacturer	Nisshinbo
File Size	599.37 KB
Description	LOW DROPOUT AND LOW NOISE VOLTAGE REGULATOR
Datasheet	RN5RZ-Nisshinbo.pdf
Additional preview pages of the RN5RZ datasheet.

RN5RZ Product details

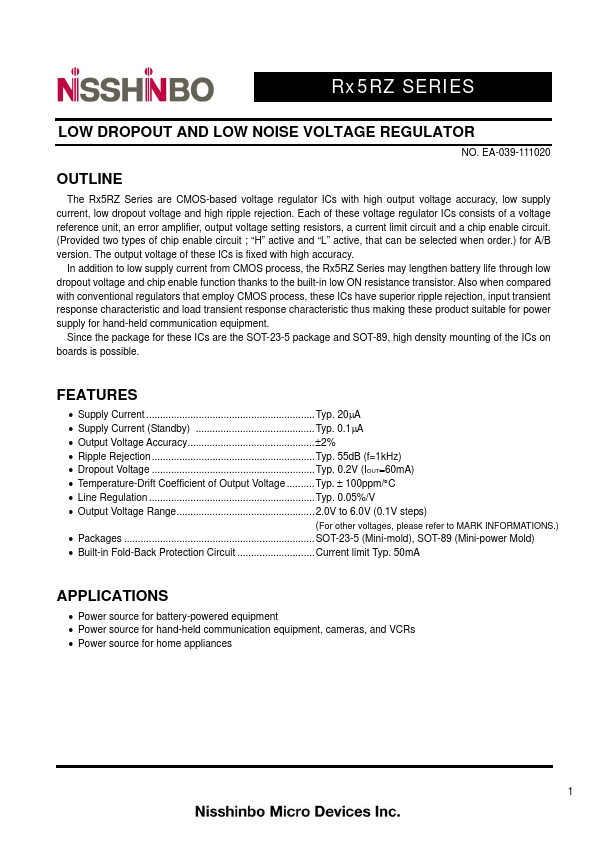

Description

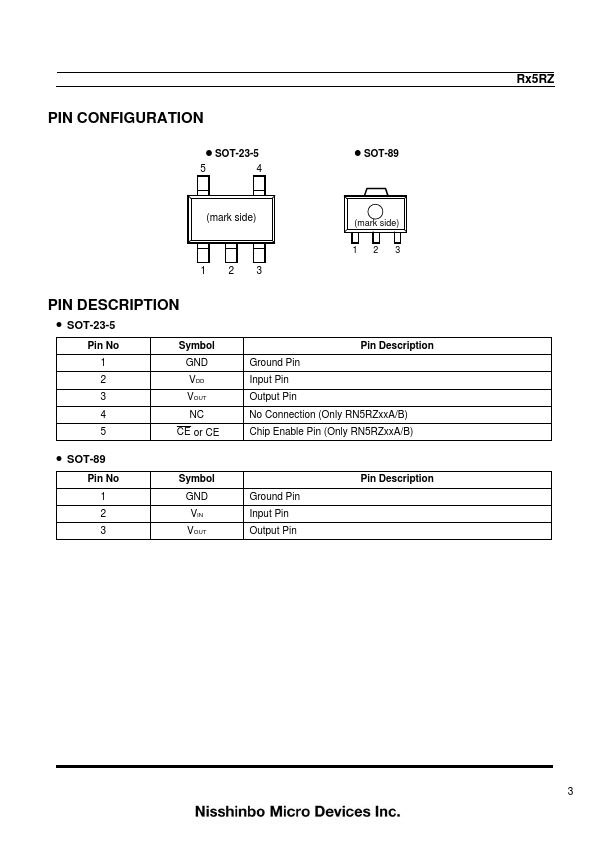

SOT-23-5 Pin No 1 2 3 4 5 Symbol GND VDD VOUT NC CE or CE SOT-89 Pin No 1 2 3 Symbol GND VIN VOUT Pin Description Ground Pin Input Pin Output Pin No Connection (Only RN5RZxxA/B) Chip Enable Pin (Only RN5RZxxA/B) Ground Pin Input Pin Output Pin Pin Description Rx5RZ 3 Rx5RZ ABSOLUTE MAXIMUM RATINGS Symbol VIN VCE VOUT IOUT PD Topt Tstg Item Input Voltage Input Voltage ( CE or CE) Output Voltage Output Current Power Dissipation∗ (SOT-23-5) Power Dissipation∗ (SOT-8

Features

Supply Current Typ. 20μA.
Supply Current (Standby) Typ. 0.1μA.
Output Voltage Accuracy±2%.
Ripple Rejection Typ. 55dB (f=1kHz).
Dropout Voltage Typ. 0.2V (IOUT=60mA).
Temperature-Drift Coefficient of Output Voltage Typ. ± 100ppm/°C.
Line Regulation Typ. 0.05%/V.
Output Voltage Range 2.0V to 6.0V (0.1V steps) (For other voltages, please refer to MARK.
