Datasheet Details
- Part number
- R1240K
- Manufacturer
- Nisshinbo
- File Size
- 925.91 KB
- Datasheet
- R1240K-Nisshinbo.pdf
- Description
- 1.2A 30 V Step-Down DC/DC Converter
R1240K Description

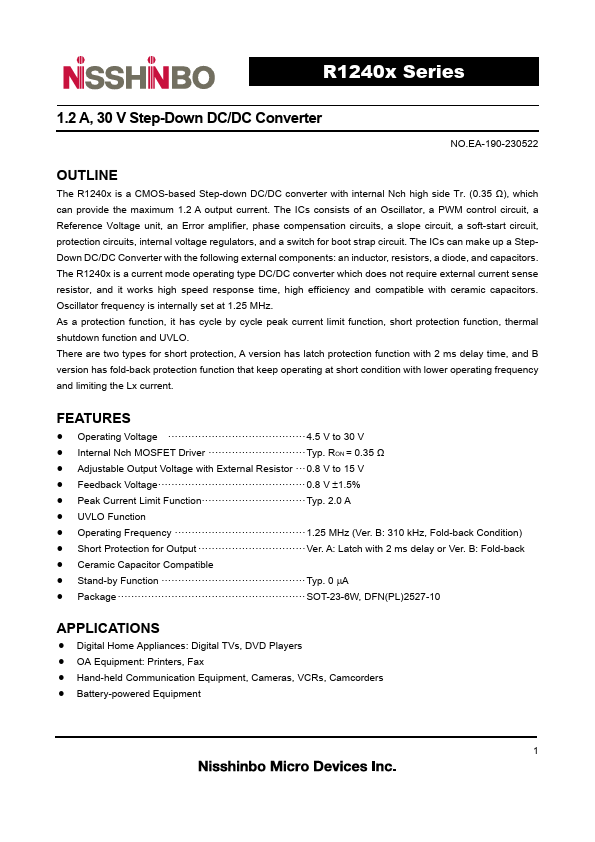

R1240x Series 1.2 A, 30 V Step-Down DC/DC Converter NO.EA-190-230522 OUTLINE The R1240x is a CMOS-based Step-down DC/DC converter with internal Nch.

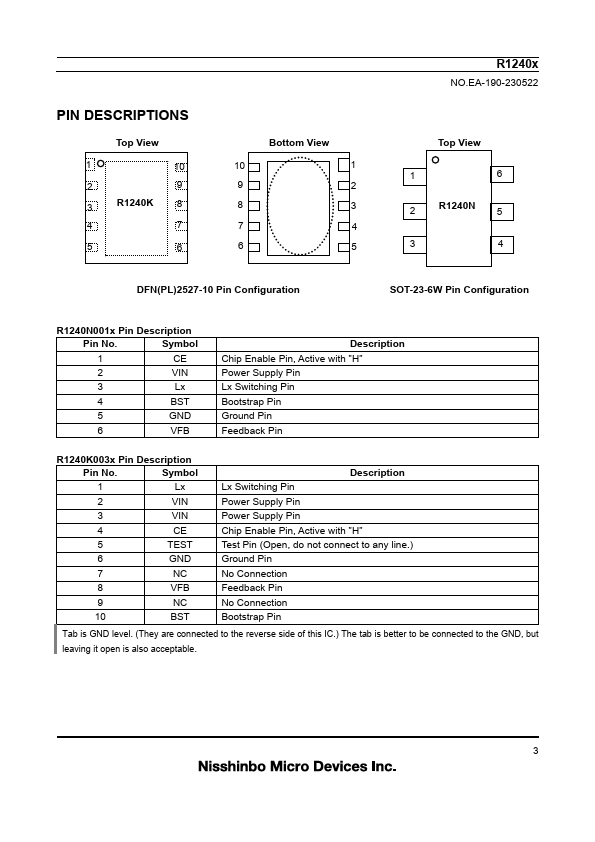

Top View
1
10
2
9
3
R1240K
8
4
7
5
6
Bottom View
10
1
9
2
8
3
7
4
6
5
R1240x
NO.
R1240K Features
* Operating Voltage
* 4.5 V to 30 V
* Internal Nch MOSFET Driver
R1240K Applications
* Digital Home Appliances: Digital TVs, DVD Players
* OA Equipment: Printers, Fax
* Hand-held Communication Equipment, Cameras, VCRs, Camcorders
* Battery-powered Equipment
1
R1240x
NO. EA-190-230522

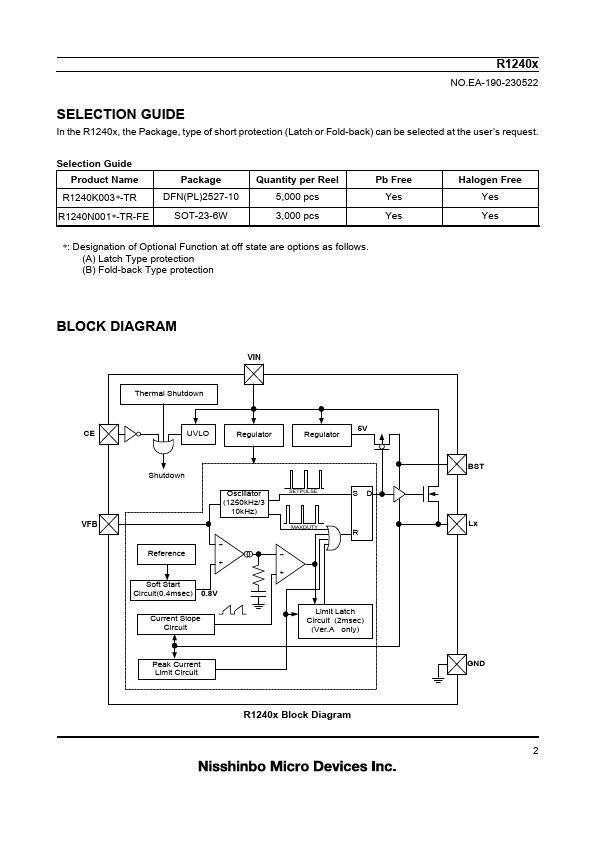

SELECTION GUIDE
In the R1240x, the Package, type of short protectio
