Description
HSOP-6J
6
5
4
TO-252-5-P2
1

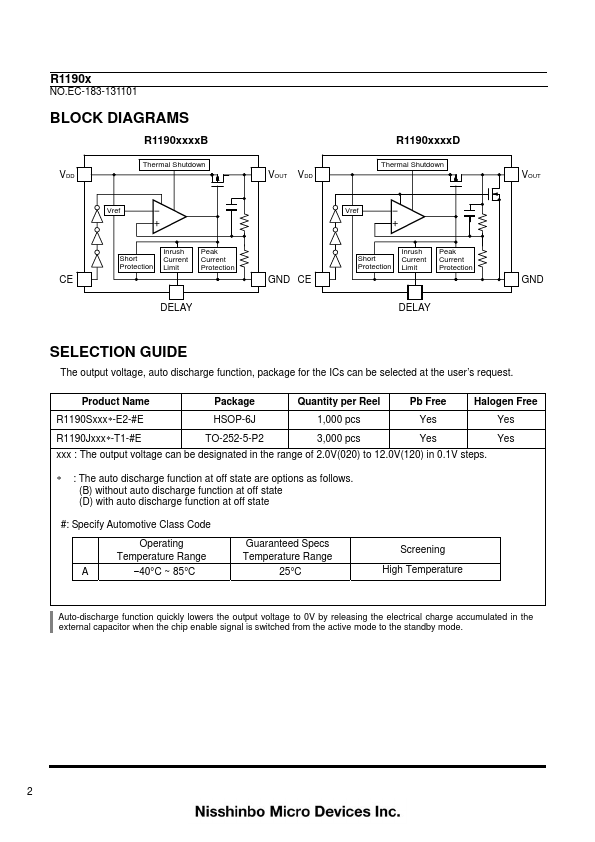

R1190x
NO.EC-183-131101
1
2
3
12345

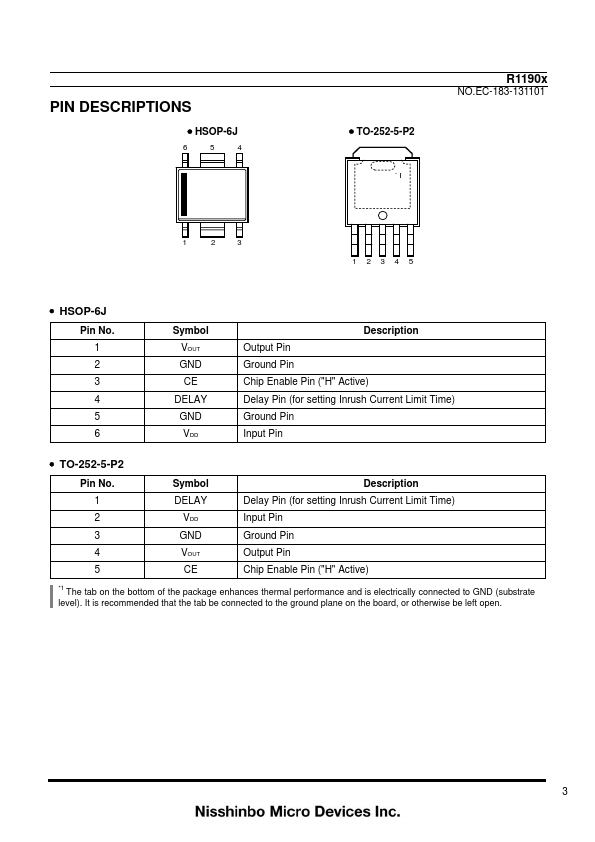

HSOP-6J Pin No.
TO-252-5-P2
Pin No.1 2 3 4 5
Symbol DELAY
VDD GND VOUT CE
Description Delay Pin (for setting Inrush Current Limit Time) Input Pin Ground Pin Output Pin Chip Enable Pin ("H" Acti

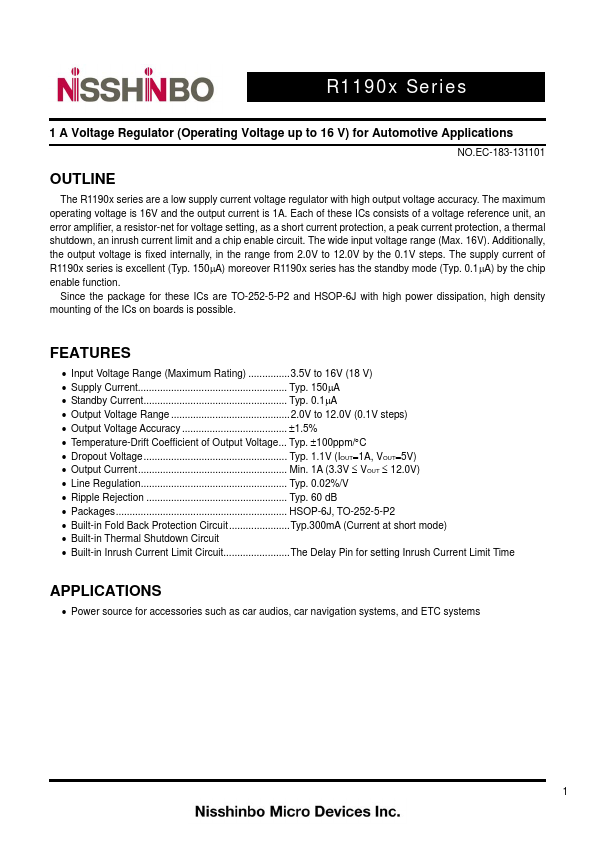

Features
- Input Voltage Range (Maximum Rating) 3.5V to 16V (18 V).
- Supply Current Typ. 150μA.
- Standby Current Typ. 0.1μA.
- Output Voltage Range 2.0V to 12.0V (0.1V steps).
- Output Voltage Accuracy ±1.5%.
- Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C.
- Dropout Voltage Typ. 1.1V (IOUT=1A, VOUT=5V).
- Output Current Min. 1A (3.3V ≤ VOUT ≤ 12.0V).
- Line Regulation Typ. 0.02%/V.
- Ripple Rejection Typ. 60 dB.
