R1155H060B-T1-FE, R1155N025B-TR-FE, 150mA 24V Input High Voltage Regulator

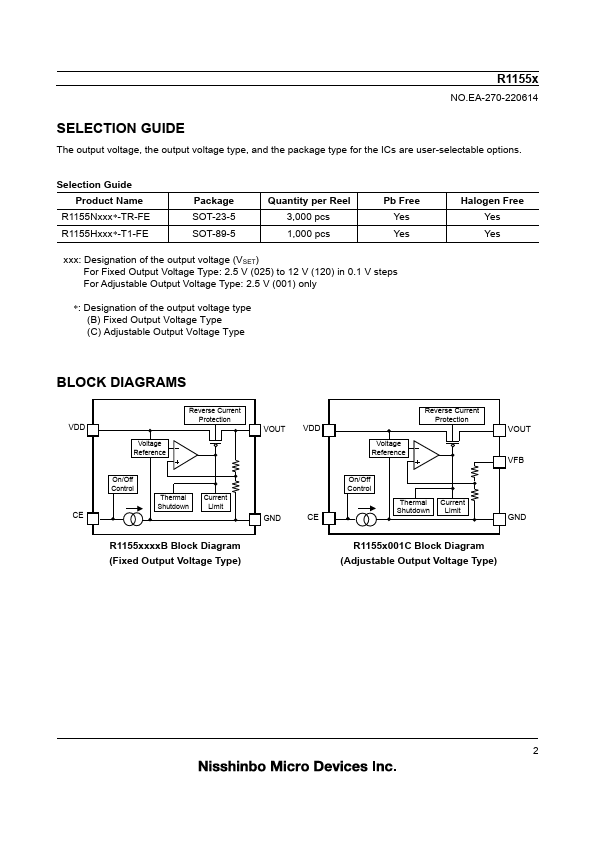

5 4 (mark side) R1155x NO.EA-270-220614 5 4 123 SOT-23-5 Pin Configuration 1 2 3 SOT-89-5 Pin Configuration SOT-23-5 Pin Description Pin No Symbol 1 VOUT 2 GND 3 VDD TP1 4 VFB2 5 CE Description VR Output Pin Ground Pin Input Pin R1155NxxxB Test Pin R1155N001C3 VR Adjus

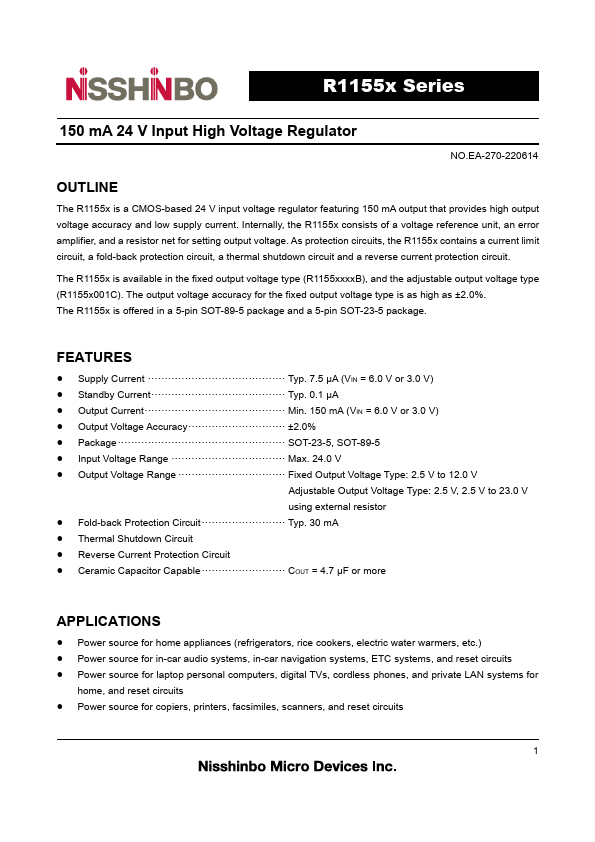

R1155x Series 150 mA 24 V Input High Voltage Regulator NO.EA-270-220614 OUTLINE The R1155x is a CMOS-based 24 V input voltage regulator featuring 150 mA output that provides high output voltage accuracy and low supply current.
Internally, the R1155x consists of a voltage reference unit, an error amplifier, and a resistor net for setting output voltage.
As protection circuits, the R1155x contains a current limit circuit, a fold-back protection circuit, a thermal shutdown circuit and a reverse
R1155H060B-T1-FE Features
* Supply Current
* Typ. 7.5 µA (VIN = 6.0 V or 3.0 V)
* Standby Current
