NT1819NAAE2S - Absorptive High Isolation SPDT Switch

Nisshinbo

Datasheet Details

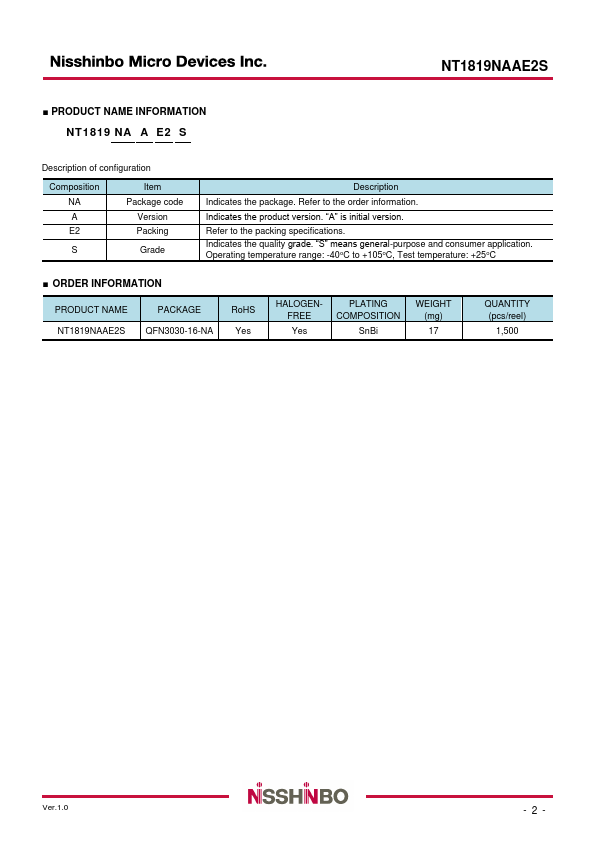

Part number	NT1819NAAE2S
Manufacturer	Nisshinbo
File Size	1.56 MB
Description	Absorptive High Isolation SPDT Switch
Datasheet	NT1819NAAE2S-Nisshinbo.pdf

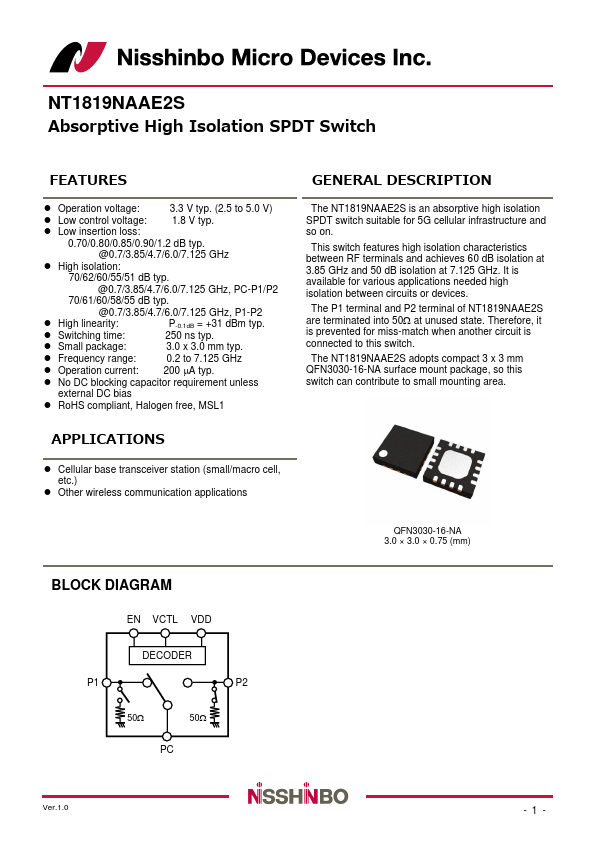

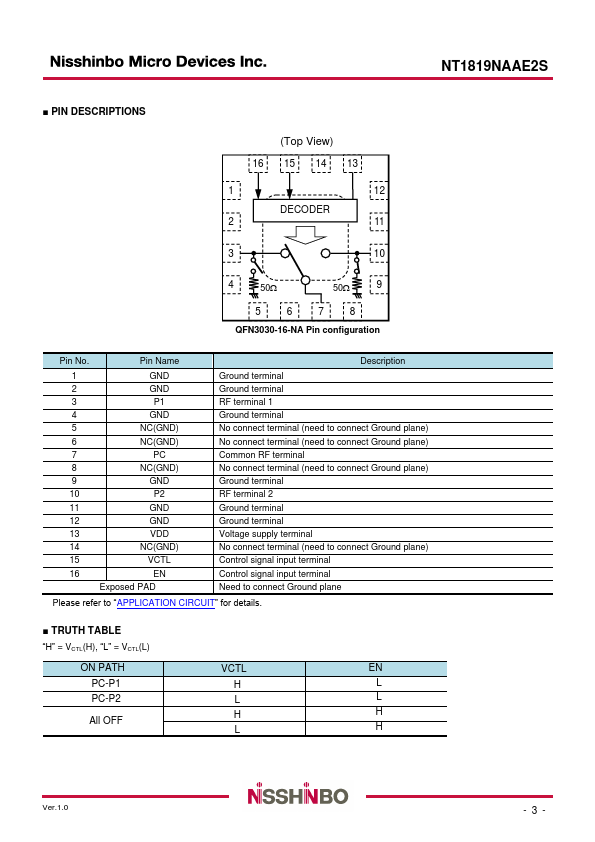

The NT1819NAAE2S is an absorptive high isolation SPDT switch suitable for 5G cellular infrastructure and so on.

Operation voltage: 3.3 V typ. (2.5 to 5.0 V).
Low control voltage: 1.8 V typ.
Low insertion loss: 0.70/0.80/0.85/0.90/1.2 dB typ. @0.7/3.85/4.7/6.0/7.125 GHz.
High isolation: 70/62/60/55/51 dB typ. @0.7/3.85/4.7/6.0/7.125 GHz, PC-P1/P2 70/61/60/58/55 dB typ. @0.7/3.85/4.7/6.0/7.125 GHz, P1-P2.
High linearity: P-0.1dB = +31 dBm typ.
Switching time: 250 ns typ.
Small package: 3.0 x 3.0 mm typ.
Frequency range: 0.2 to 7.125 GHz.
