NL6010 - Operational Amplifier

Nisshinbo

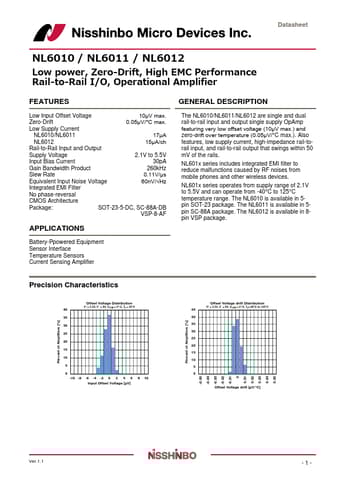

NL6010 Datasheet Preview — Preview of NL6010 PDF

Datasheet Details

Part number	NL6010
Manufacturer	Nisshinbo
File Size	1.33 MB
Description	Operational Amplifier
Datasheet	NL6010-Nisshinbo.pdf

NL6010 Product details

Description

The NL6010/NL6011/NL6012 are single and dual rail-to-rail input and output single supply OpAmp featuring very low offset voltage (10μV max.) and zero-drift over temperature (0.05μV/°C max.).

Features

Low Input Offset Voltage 10μV max. Zero-Drift 0.05μV/°C max. Low Supply Current NL6010/NL6011 17μA NL6012 15μA/ch Rail-to-Rail Input and Output Supply Voltage 2.1V to 5.5V Input Bias Current 30pA Gain Bandwidth Product 260kHz Slew Rate 0.11V/μs Equivalent Input Noise Voltage 60nV/√Hz Integrated EMI Filter No phase-reversal CMOS Architecture Package: SOT-23-5-DC, SC-88A-DB VSP-8-AF.
