NC4650 - Ultra-Low Quiescent Current Boost Switching Regulator

NC4650 Description

NC4650 Series Datasheet Ultra-Low Quiescent Current (Iq = 70nA) Boost Switching Regulator with Low Ripple Mode .
The NC4650 is a synchronous rectification boost switching regulator featuring ultra-low quiescent current of 70nA, utilizing a CMOS process.

NC4650 Features

* Operating Junction Temperature Range: -40 ºC to 125 ºC
* Input Voltage Range (Maximum Rating): 0.6 V to 5.5 V (6.5 V)
* Startup Voltage: Typ. 0.8 V
* Output Voltage Range:1.8 V to 5.0 V (Int. Fixed)
* Quiescent Current (VOUT): Normal Mode: Typ. 70 nA Low Ripple Mode: T

NC4650 Applications

* IoT Edge Devices
* Devices Powered by Coin/Button/Dry Batteries

📥 Download Datasheet

Preview of NC4650 PDF

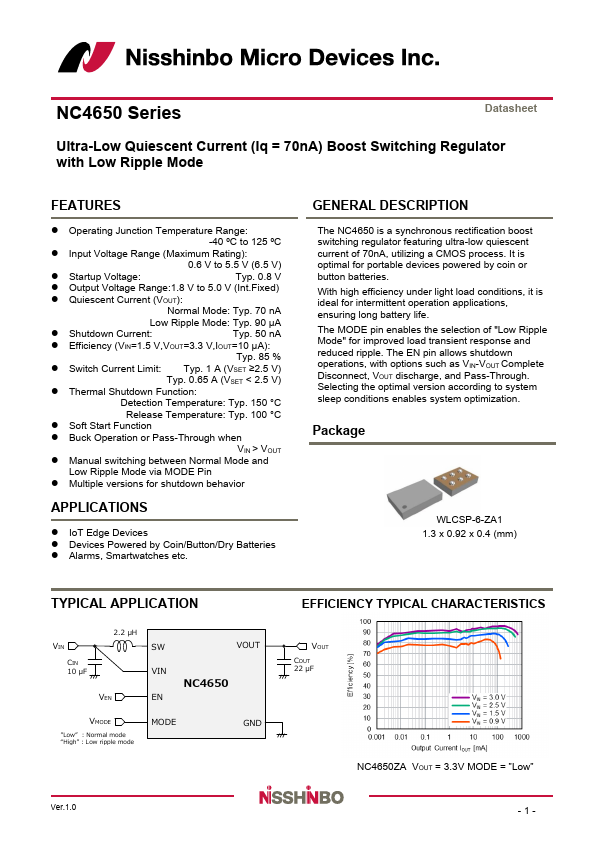

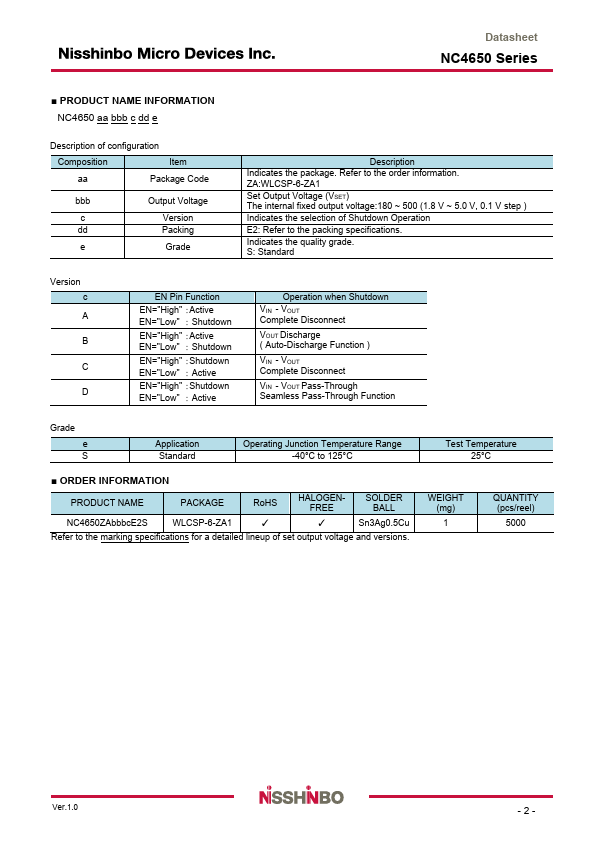

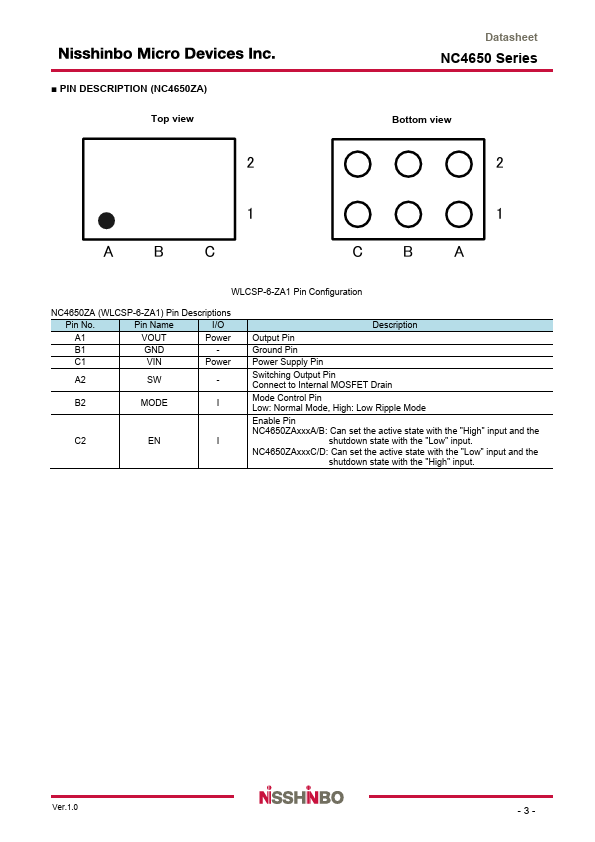

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NC4650
Manufacturer
Nisshinbo
File Size
1.47 MB
Datasheet
NC4650-Nisshinbo.pdf
Description
Ultra-Low Quiescent Current Boost Switching Regulator
