SM5158A - Serial input PLL frequency synthesizer

Nippon Precision Circuits Inc

📥 Download Datasheet

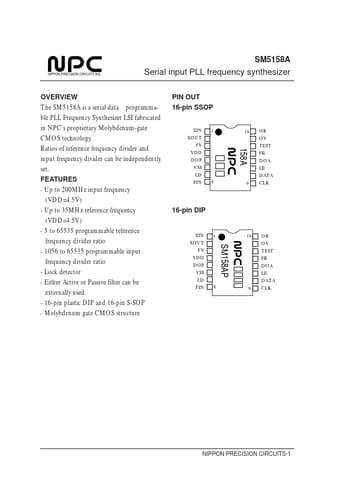

SM5158A Datasheet Preview — Preview of SM5158A PDF

Datasheet Details

Part number	SM5158A
Manufacturer	Nippon Precision Circuits Inc
File Size	60.51 KB
Description	Serial input PLL frequency synthesizer
Datasheet	SM5158A_NipponPrecisionCircuitsInc.pdf

SM5158A Product details

Description

Number 1 2 3 4 5 6 7 8 Name XIN XOUT FV VDD DOP VSS LD FIN Description To connect external crystal and capacitor, or external clock input pin.To connect external crystal and capacitor,or oscilator output signal can be available at this pin.Buffered input frequency divider output.phase detector input Positive supply pin.Apply +2.7 to 5.5 Volts.Charge pump output for passive lowpass filter.Single ended tristate output.Ground.Lock detector output.Logic Low when PLL is unlocked.Compariso

Features

- Up to 200MHz input frequency (VDD=4.5V) - Up to 35MHz reference frequency (VDD=4.5V) - 5 to 65535 programmable reference frequency divider ratio - 1056 to 65535 programmable input frequency divider ratio - Lock detector - Either Active or Passive filter can be externally used. - 16-pin plastic DIP and 16-pin S-SOP - Molybdenum gate CMOS structure XIN XOUT FV VDD DOP VSS LD FIN 1 16 8 9 OR OV TEST FR DOA LE DATA CLK 158A 16-pin DIP XIN XOUT FV VDD DOP VSS LD FIN 1 16 8 9 OR OV TES.
