NT75-A-x - Forward Relay

Download the NT75-A-x datasheet PDF. This datasheet also covers the NT75 variant, as both devices belong to the same forward relay family and are provided as variant models within a single manufacturer datasheet.

Features

  • Small size, light weight. Low coil consumption. Switching capacity up to 16A. PC board mounting. Suitable for household electrical appliances, automation system, electrical equipment, instrument, meter telecommunication facilities and remote control facilities. www. DataSheet4U. com Qualification inspection: Perform the qualification test as specified in the table of IEC255-19-1 and minimum sample size 24. T UV 16A/250VAC 30VDC CQC 1A,1C:16A/250VAC,30VDC 2A,2C:8A/250VAC,30VDC Ordering Informatio.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NT75_Ningbo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NT75-A-x
Manufacturer Ningbo
File Size 276.59 KB
Description Forward Relay
Datasheet download datasheet NT75-A-x Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NT75-1 (NT75-1 / NT75-2) Low coil consumption DB Lectro
NT75-2 (NT75-1 / NT75-2) Low coil consumption DB Lectro
NT7501 33 X 100 RAM-Map LCD Controller/Driver Novatek
NT7502 65 X 132 RAM-Map LCD Controller / Driver Novatek
NT7532 65 x 132 RAM-Map LCD Controller/Driver Novatek

Other Datasheets by Ningbo

Part Number Description
NT75-1A-x Forward Relay
NT75-1C-x Forward Relay
NT75-2A-x Forward Relay
NT75-2C-x Forward Relay
NT75-C-S Forward Relay

Full PDF Text Transcription

Click to expand full text

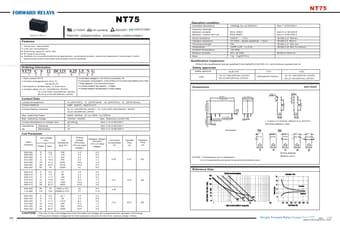

NT75 NT75 R Operation condition Insulation Resistance 1000M min (at 500VDC) Item 7 of IEC255-5 Item 6 of IEC255-5 Item 6 of IEC255-5 IEC68-2-27 T est Ea IEC68-2-6 T est Fc IEC68-2-21 Test Ua1 IEC68-2-20 Test Ta method 1 IEC68-2-3Test Ca Dielectric Strength Between contacts Between contact and coil Shock resistance Vibration resistance Terminals strength Solderability Ambient Temperature Relative Humidity Mass 50Hz 1000V 50Hz 5000V 100m/s2 11ms 10~55Hz double amplitude 1.5mm 10N 235 2 3 0.5s -40~85 85% (at 40 ) 11g 12g(NT75-2) C US E158859 VDE On pending R2033977 04001010697 29 12.7 15.7 Patent No.: 200520013535.9 200510050849.0 200620105885.2 Features Small size, light weight. Low coil consumption. Switching capacity up to 16A. PC board mounting.
