L1085SG - 3A Adjustable Low Dropout Linear Regulator

Download the L1085SG datasheet PDF. This datasheet also covers the L1085XG-Niko variant, as both devices belong to the same 3a adjustable low dropout linear regulator family and are provided as variant models within a single manufacturer datasheet.

Description

The L1085G is a positive and low dropout three-terminal voltage regulator with 3A output current capability.

This device is designed for use in low voltage applications that offers lower dropout voltage and faster transient response.

Features

  • the low dropout of maximum 1.45 volts. The L1085G Series regulators are available in the popular industry standard TO-220 TO-263 and TO-252 packages.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (L1085XG-Niko-Sem.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number L1085SG
Manufacturer NIKO-SEM
File Size 162.77 KB
Description 3A Adjustable Low Dropout Linear Regulator
Datasheet download datasheet L1085SG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
L1085 3A Adjustable Low Dropout Linear Regulator Niko
L1085-3.3 3A Fixed Low Dropout Linear Regulator Niko
L1085-35M00 NIR Stem Type LED Marubeni
L1084-3.3 5A Fixed Low Dropout Linear Regulator Niko
L1087 800mA fixed and adjustable low dropout linear regulator National Semiconductor

Other Datasheets by NIKO-SEM

Part Number Description
L1085S3G 3A Adjustable Low Dropout Linear Regulator
L1085DG 3A Adjustable Low Dropout Linear Regulator
L1085TG 3A Adjustable Low Dropout Linear Regulator
L1085XG 3A Adjustable Low Dropout Linear Regulator
L1084 5A Adjustable Low DropoutLinear Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

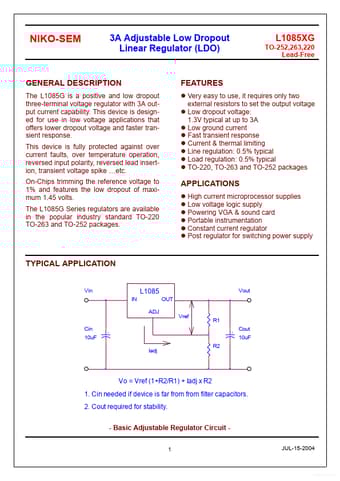

NIKO-SEM 3A Adjustable Low Dropout Linear Regulator (LDO) L1085XG TO-252,263,220 Lead-Free GENERAL DESCRIPTION The L1085G is a positive and low dropout three-terminal voltage regulator with 3A output current capability. This device is designed for use in low voltage applications that offers lower dropout voltage and faster transient response. This device is fully protected against over current faults, over temperature operation, reversed input polarity, reversed lead insertion, transient voltage spike …etc. On-Chips trimming the reference voltage to 1% and features the low dropout of maximum 1.45 volts. The L1085G Series regulators are available in the popular industry standard TO-220 TO-263 and TO-252 packages.
