MRB Datasheet (Nihon Kaiheiki Industry) - Miniature PCB Process Sealed Rotaries

MRB, Miniature PCB Process Sealed Rotaries

FOR TYPICAL ORDERING EXAMPLE MRB12B-A Plain Black Knob SPDT with ON-NONE-ON Circuit & 90° Indexing Straight PC Terminals with Bracket POLES & CIRCUITS Actuator Positions Pole Model MRB12 SP MRB14 ON ON ON C1-1 C1-2 C1-3 SP3T 1 2 3 Connected Terminals Position 1 C1-1 Position 2 OPEN Position 3

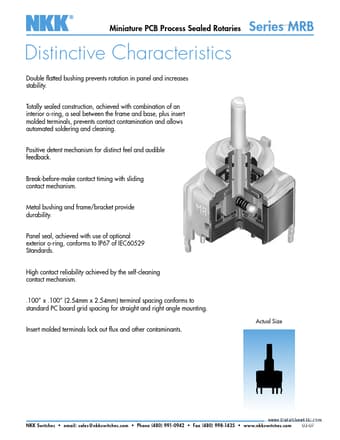

Miniature PCB Process Sealed Rotaries Series MRB www.DataSheet4U.com Distinctive Characteristics Double flatted bushing prevents rotation in panel and increases stability.

Totally sealed construction, achieved with combination of an interior o-ring, a seal between the frame and base, plus insert molded terminals, prevents contact contamination and allows automated soldering and cleaning.

Positive detent mechanism for distinct feel and audible feedback.

Break-before-make contact timing with sli
