PAT2008 - THYRISTOR

Features

Isolated Base.
Dual Thyristors or Thyristor and Diode Anti-Parallel Circuit.
High Surge Capability.
UL Recognized, File No. E187184.

PAT2008 thyristor by Nihon Inter Electronics - Datasheet Preview

Datasheet Details

Part number	PAT2008
Manufacturer	Nihon Inter Electronics Co., Ltd
File Size	295.74 KB
Description	THYRISTOR
Datasheet	PAT2008 Datasheet

📁 Similar Datasheet

PAT20012 - (PAT20012 / PAT20016) THYRISTOR MODULE (Nihon Inter Electronics Corporation)
PAT20016 - (PAT20012 / PAT20016) THYRISTOR MODULE (Nihon Inter Electronics Corporation)
PAT2010 - Precision Automotive Thin Film Chip Resistor (Vishay)
PAT2208 - Precision Automotive Thin Film Chip Resistor (Vishay)
PAT2512 - Precision Automotive Thin Film Chip Resistor (Vishay)
PAT - Precision Automotive Thin Film Chip Resistors (Vishay Siliconix)
PAT-0701 - TRANSFORMER FOR ADSL MODEM (Micro Electronics)
PAT-1 - (PAT-xx) Fixed Attenuators (Mini-Circuits)
PAT-10 - (PAT-xx) Fixed Attenuators (Mini-Circuits)
PAT-12 - Fixed Attenuators (Mini-Circuits)

Other Datasheets by Nihon Inter Electronics

PAT10016 - THYRISTOR
PAT1008 - THYRISTOR
PAT1008AC - THYRISTOR
PAT15016 - THYRISTOR
PAT3016 - THYRISTOR
PAT308 - THYRISTOR MODULE
PAT308AC - THYRISTOR
PAT6016 - THYRISTOR

Full PDF Text Transcription

Click to expand full text

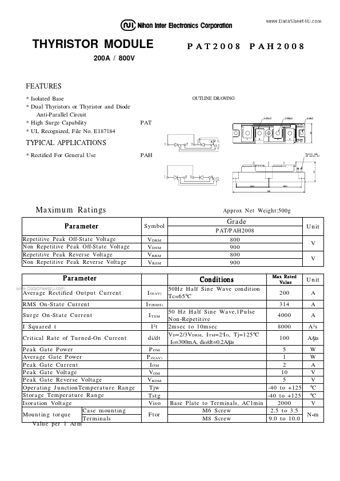

THYRISTOR MODULE 200A / 800V PAT2008 PAH2008 FEATURES * Isolated Base * Dual Thyristors or Thyristor and Diode Anti-Parallel Circuit * High Surge Capability * UL Recognized, File No. E187184 OUTLINE DRAWING PAT TYPICAL APPLICATIONS * Rectified For General Use PAH Maximum Ratings Parameter Repetitive Peak Off-State Voltage Non Repetitive Peak Off-State Voltage Repetitive Peak Reverse Voltage Non Repetitive Peak Reverse Voltage Approx Net Weight:500g Symbol VDRM VDSM VRRM VRSM Grade PAT/PAH2008 Unit V V Max Rated Value 800 900 800 900 Parameter www.DataSheet4U.
