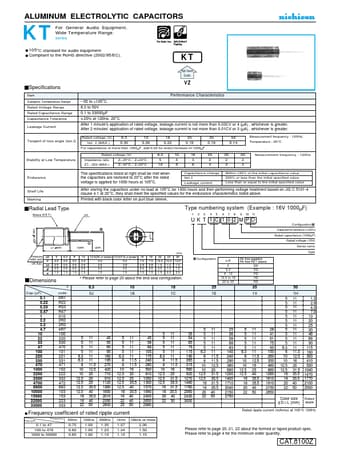

ALUMINUM ELECTROLYTIC CAPACITORS
KT For General Audio Equipment, Wide Temperature Range. series
105°C standard for audio equipment. Compliant to the RoHS directive (2002/95/EC).
KT
High Sound Quality
Specifications
Item Category Temperature Range Rated Voltage Range Rated Capacitance Range Capacitance Tolerance
Leakage Current
VZ
Performance Characteristics – 55 to +105°C 6.3 to 50V 0.1 to 33000µF ± 20% at 120Hz, 20°C After 1 minute's application of rated voltage, leakage current is not more than 0.03CV or 4 (µA) , whichever is greater. After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.
Tangent of loss angle (tan δ)
Rated voltage (V)
6.3
10
16
25
35
tan δ (MAX.)
0.30
0.26
0.22
0.18
0.
