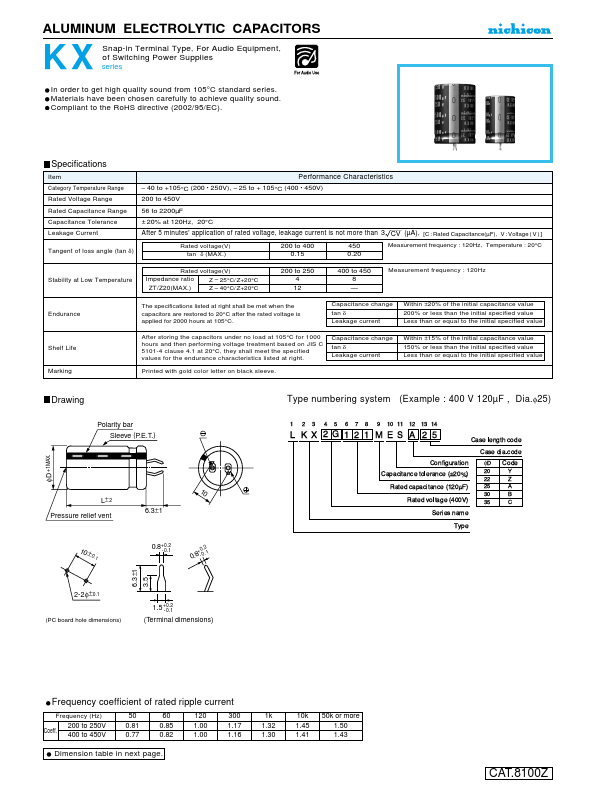

ALUMINUM ELECTROLYTIC CAPACITORS
KX Snap-in Terminal Type, For Audio Equipment, of Switching Power Supplies series
In order to get high quality sound from 105°C standard series. Materials have been chosen carefully to achieve quality sound. Compliant to the RoHS directive (2002/95/EC).
Specifications
Item Performance Characteristics
Category Temperature Range
– 40 to +105°C (200 • 250V), – 25 to + 105°C (400 • 450V)
Rated Voltage Range
200 to 450V
Rated Capacitance Range 56 to 2200µF
Capacitance Tolerance
± 20% at 120Hz, 20°C
Leakage Current
After 5 minutes' application of rated voltage, leakage current is not more than 3 CV (µA), [C : Rated Capacitance(µF), V : Voltage ( V ) ]
Tangent of loss angle (tan δ)
Rated voltage(V) tan δ (MAX.)
200 to 400 0.15
450 0.
