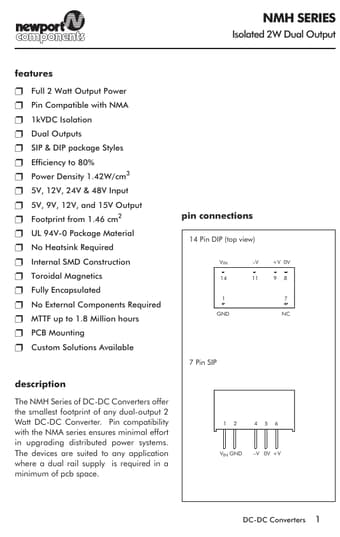

Description
The NMH Series of DC-DC Converters offer the smallest footprint of any dual-output 2 Watt DC-DC Converter.
V 0V +V
DC-DC Converters 1
NMH SERIES
Isolated 2W Dual Output
absolute maximum ratings over operating free air
temperature range
Input voltage VIN NMH05
Features
- p Full 2 Watt Output Power p Pin Compatible with NMA p 1kVDC Isolation p Dual Outputs p SIP & DIP package Styles p Efficiency to 80% p Power Density 1.42W/cm3 p 5V, 12V, 24V & 48V Input p 5V, 9V, 12V, and 15V Output p Footprint from 1.46 cm2 p UL 94V-0 Package Material p No Heatsink Required p Internal SMD Construction p Toroidal Magnetics p Fully Encapsulated p No External Components Required p MTTF up to 1.8 Million hours p PCB Mounting p Custom Solutions Available
pin connections
14 Pin DIP.
NMH1209 Datasheet
