NJM2370 - LOW DROPOUT VOLTAGE REGULATOR

New Japan Radio

The NJM2370 by New Japan Radio is a LOW DROPOUT VOLTAGE REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

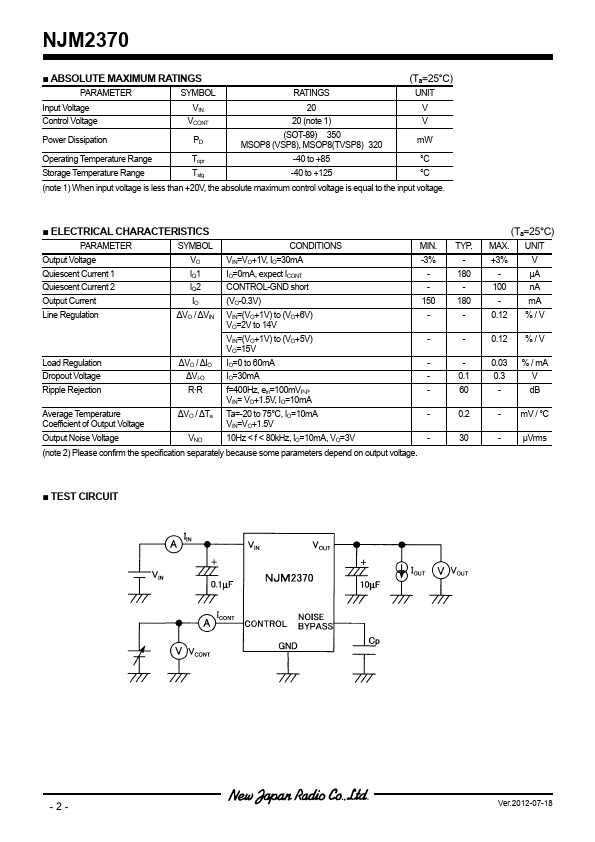

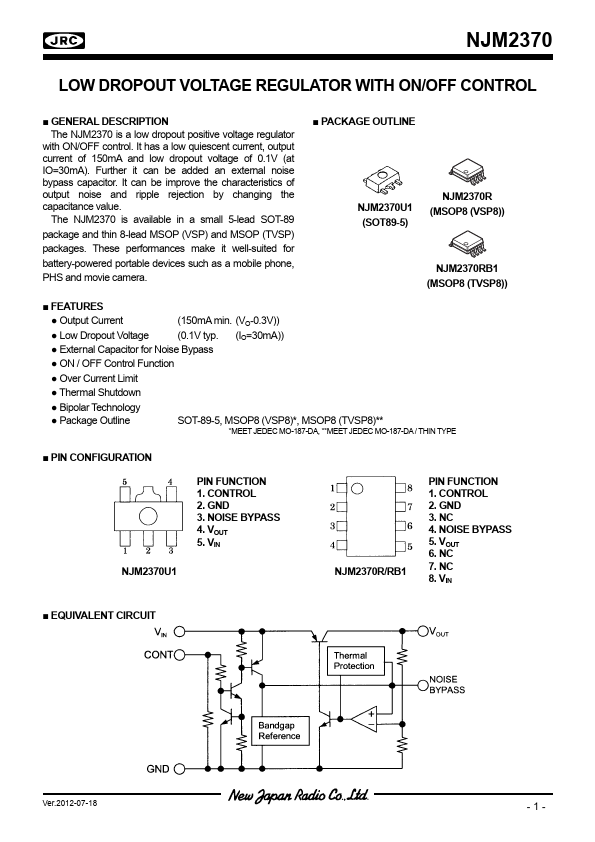

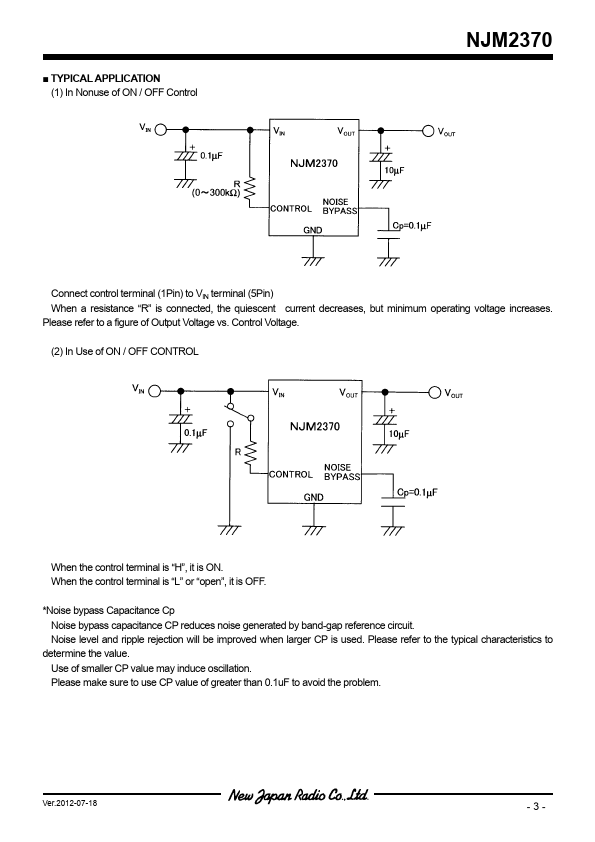

NJM2370 LOW DROPOUT VOLTAGE REGULATOR by New Japan Radio - Datasheet Preview — Official preview page of the **NJM2370** LOW DROPOUT VOLTAGE REGULATOR datasheet (New Japan Radio).

Datasheet Details

Part number	NJM2370
Manufacturer	New Japan Radio
File Size	201.85 KB
Description	LOW DROPOUT VOLTAGE REGULATOR
Datasheet	NJM2370_NewJapanRadio.pdf
Additional preview pages of the NJM2370 datasheet.

NJM2370 Product details

Description

The NJM2370 is a low dropout positive voltage regulator with ON/OFF control.It has a low quiescent current, output current of 150mA and low dropout voltage of 0.1V (at IO=30mA).Further it can be added an external noise bypass capacitor.It can be improve the characteristics of output noise and ripple rejection by changing the capacitance value.The NJM2370 is available in a small 5-lead SOT-89 package and thin 8-lead MSOP (VSP) and MSOP (TVSP) packages.These performances make it well-suited f

Features

S.
Output Current (150mA min. (VO-0.3V)).
Low Dropout Voltage (0.1V typ. (IO=30mA)).
External Capacitor for Noise Bypass.
ON / OFF Control Function.
Over Current Limit.
Thermal Shutdown.
Bipolar Technology.
Package Outline SOT-89-5, MSOP8 (VSP8).
, MSOP8 (TVSP8).
MEET JEDEC MO-187-DA,.
MEET JEDEC MO-187-DA / THIN TYPE.
PIN.
