NJM2369 - SWITCHING REGULATOR CONTROL IC

New Japan Radio

📥 Download Datasheet

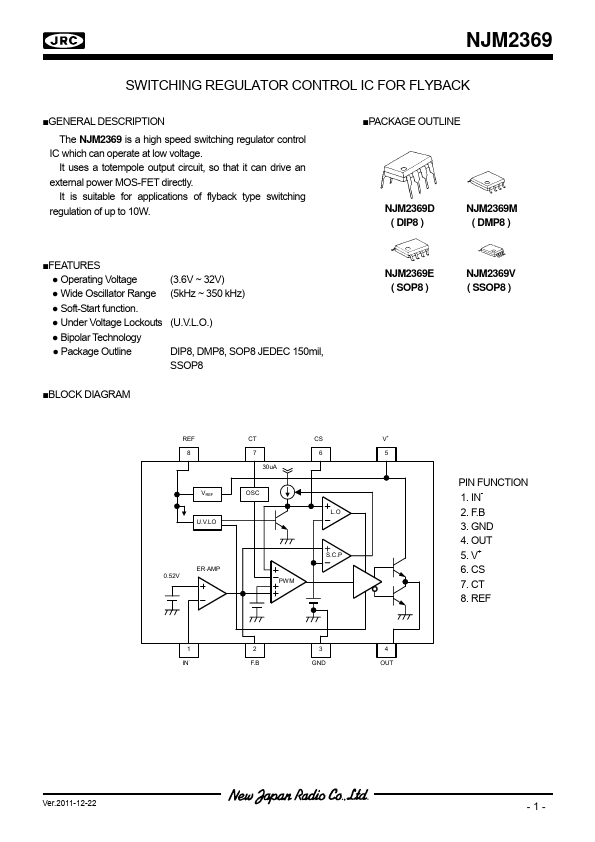

NJM2369 Datasheet Preview — Preview of NJM2369 PDF

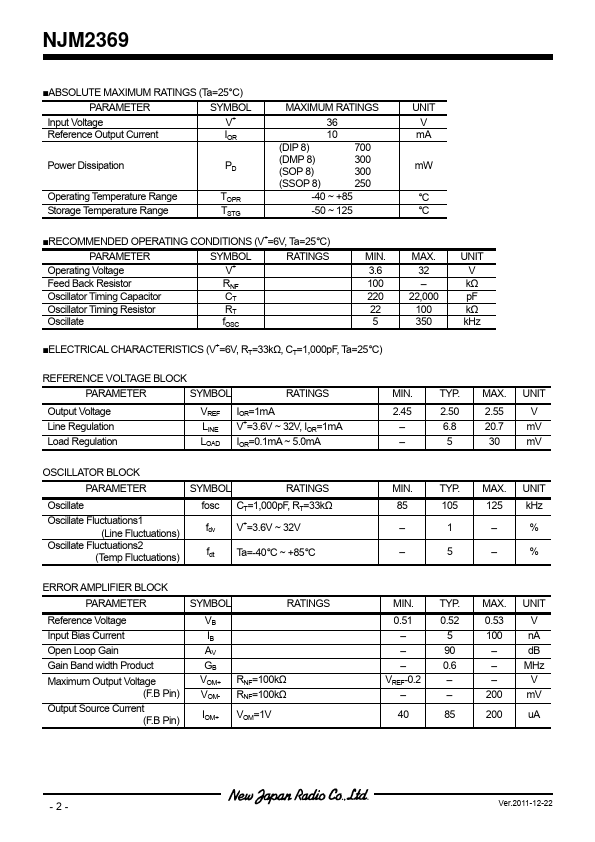

datasheet Preview Page 2

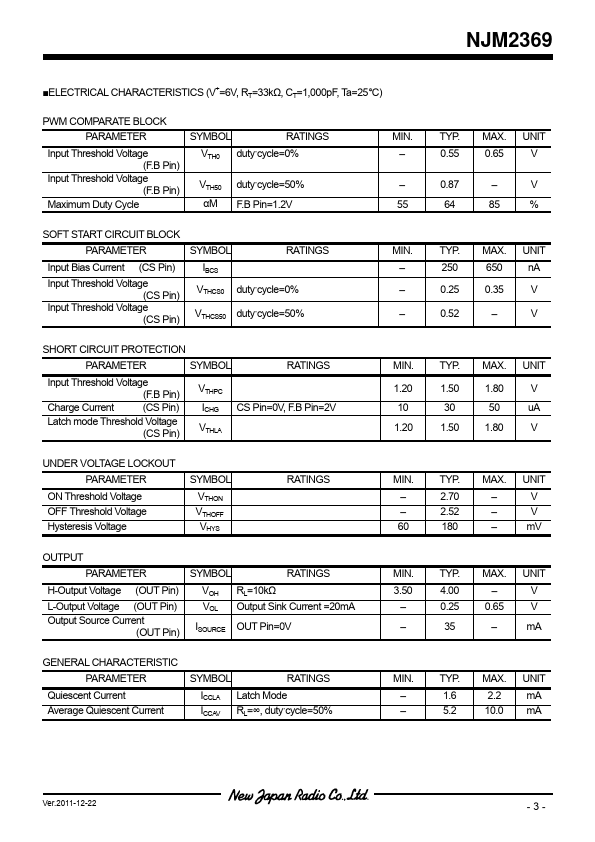

datasheet Preview Page 3

Datasheet Details

Part number	NJM2369
Manufacturer	New Japan Radio
File Size	115.05 KB
Description	SWITCHING REGULATOR CONTROL IC
Datasheet	NJM2369_NewJapanRadio.pdf

NJM2369 Product details

Description

The NJM2369 is a high speed switching regulator control IC which can operate at low voltage. PACKAGE OUTLINE NJM2369D ( DIP8 ) NJM2369M ( DMP8 )

Features

Operating Voltage (3.6V ~ 32V).
Wide Oscillator Range (5kHz ~ 350 kHz).
Soft-Start function.
Under Voltage Lockouts (U. V. L. O. ).
Bipolar Technology.
Package Outline DIP8, DMP8, SOP8 JEDEC 150mil, SSOP8.
BLOCK.
