NJG1155UX2 - GNSS LOW NOISE AMPLIFIER

New Japan Radio

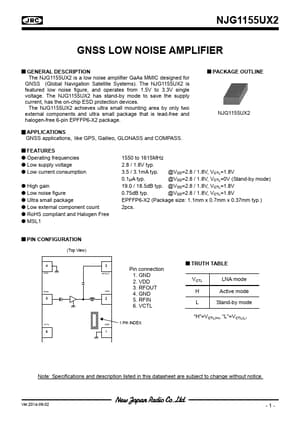

NJG1155UX2 Datasheet Preview — Preview of NJG1155UX2 PDF

Datasheet Details

Part number	NJG1155UX2
Manufacturer	New Japan Radio
File Size	377.72 KB
Description	GNSS LOW NOISE AMPLIFIER
Datasheet	NJG1155UX2-NewJapanRadio.pdf

NJG1155UX2 Product details

Description

The NJG1155UX2 is a low noise amplifier GaAs MMIC designed for GNSS (Global Navigation Satellite Systems).The NJG1155UX2 is featured low noise figure, and operates from 1.5V to 3.3V single voltage.The NJG1155UX2 has stand-by mode to save the supply current, has the on-chip ESD protection devices.The NJG1155UX2 achieves ultra small mounting area by only two external components and ultra small package that is lead-free and halogen-free 6-pin EPFFP6-X2 package.I

Features

G Operating frequencies G Low supply voltage G Low current consumption G High gain G Low noise figure G Ultra small package G Low external component count G RoHS compliant and Halogen Free G MSL1 1550 to 1615MHz 2.8 / 1.8V typ. 3.5 / 3.1mA typ. 0.1µA typ. @VDD=2.8 / 1.8V, VCTL=1.8V @VDD=2.8 / 1.8V, VCTL=0V (Stand-by mode) 19.0 / 18.5dB typ. @VDD=2.8.
