NV6148C - 700V Advanced GaNSlim Power IC

Product Overview

Navitas

📥 Download Datasheet

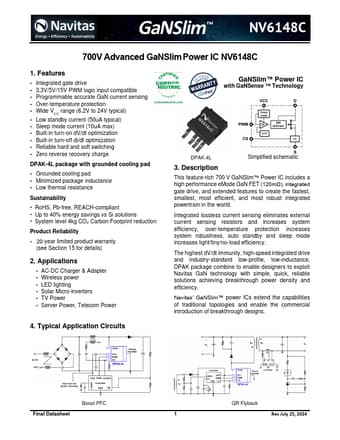

NV6148C 700V Advanced GaNSlim Power IC by Navitas - Datasheet Preview — Datasheet preview – NV6148C

Datasheet Details

Part number	NV6148C
Manufacturer	Navitas
File Size	1.57 MB
Description	700V Advanced GaNSlim Power IC
Datasheet	NV6148C Datasheet
Additional preview pages of the NV6148C datasheet.

Product details

Description

This feature-rich 700 V GaNSlim™ Power IC includes a high performance eMode GaN FET (120mΩ), integrated gate drive, and extended

Features

Integrated gate drive.
3.3V/5V/15V PWM logic input compatible.
Programmable accurate GaN current sensing.
Over-temperature protection.
Wide VCC range (6.2V to 24V typical).
Low standby current (50uA typical).
Sleep mode current (10uA max).
Built-in turn-on dV/dt optimization.
Built-in turn-off di/dt optimization.
Reliable hard and soft switching.
Zero reverse recovery charge DPAK-4L package with g.
