NS486SXF - NS486TMSXF Optimized 32-Bit 486-Class Controller

National

📥 Download Datasheet

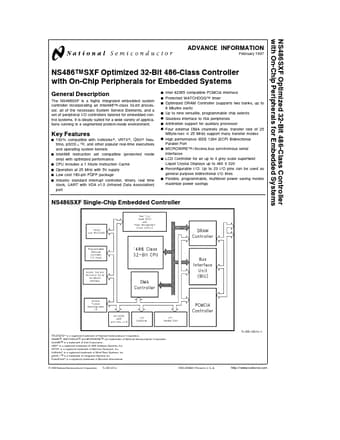

NS486SXF Datasheet Preview — Preview of NS486SXF PDF

Datasheet Details

Part number	NS486SXF
Manufacturer	National
File Size	444.26 KB
Description	NS486TMSXF Optimized 32-Bit 486-Class Controller
Datasheet	NS486SXF_NationalSemiconductor.pdf

NS486SXF Product details

Description

The NS486SXF is a highly integrated embedded system controller incorporating an Intel486TM -class 32-bit processor all of the necessary System Service Elements and a set of peripheral I O controllers tailored for embedded control systems It is ideally suited for a wide variety of applications running in a segmented protect-mode environment Y Y Y Y Y Y Y Key

Features

Y Y Y Y Y Y 100% compatible with VxWorks VRTX QNX Neutrino pSOS a TM and other popular real-time executives and operating system kernels Intel486 instruction set compatible (protected mode only) with optimized performance CPU includes a 1 Kbyte Instruction Cache Operation at 25 MHz with 5V supply Low cost 160-pin PQFP package Industry standard interrupt controller timers real time clock UART with IrDA v1 0 (Infrared Data Association) port Y Y Y Y Y Intel 82365 compatible PCMCIA interfac.
