MM74C374 - Octal D-Type Latch Octal D-Type Flip-Flop

National

The MM74C374 by National is a Octal D-Type Latch Octal D-Type Flip-Flop. Below is the official datasheet preview.

📥 Download Datasheet

MM74C374 Octal D-Type Latch Octal D-Type Flip-Flop by National - Datasheet Preview — Official preview page of the **MM74C374** Octal D-Type Latch Octal D-Type Flip-Flop datasheet (National).

Datasheet Details

Part number	MM74C374
Manufacturer	National
File Size	170.15 KB
Description	Octal D-Type Latch Octal D-Type Flip-Flop
Datasheet	MM74C374_NationalSemiconductor.pdf

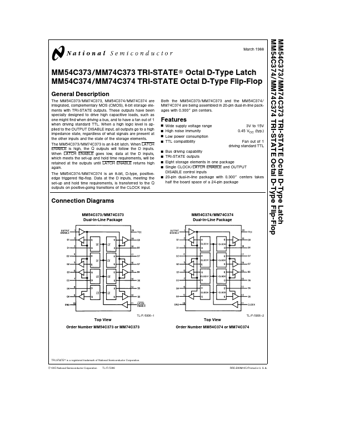

Additional preview pages of the MM74C374 datasheet.

MM74C374 Product details

Description

The MM54C373 MM74C373 MM54C374 MM74C374 are integrated complementary MOS (CMOS) 8-bit storage elements with TRI-STATE outputs These outputs have been specially designed to drive high capacitive loads such as one might find when driving a bus and to have a fan out of 1 when driving standard TTL When a high logic level is applied to the OUTPUT DISABLE input all outputs go to a high impedance state regardless of what signals are present at the other inputs and the state of the storage elements The

Features

Y Y Y Y Wide supply voltage range High noise immunity Low power consumption TTL compatibility 3V to 15V 0 45 VCC (typ ) Fan out of 1 driving standard TTL Y Y Y Y Y Bus driving capability TRI-STATE outputs Eight storage elements in one package Single CLOCK LATCH ENABLE and OUTPUT.
