MM74C174 - Hex D Flip-Flop

National

The MM74C174 by National is a Hex D Flip-Flop. Below is the official datasheet preview.

📥 Download Datasheet

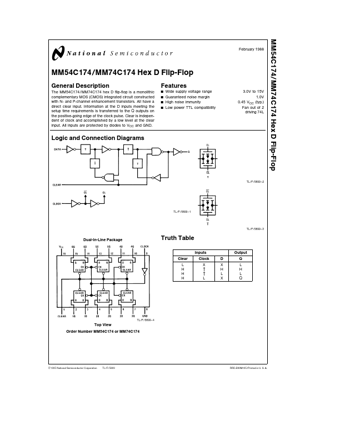

MM74C174 Hex D Flip-Flop by National - Datasheet Preview — Official preview page of the **MM74C174** Hex D Flip-Flop datasheet (National).

Datasheet Details

Part number	MM74C174
Manufacturer	National
File Size	112.84 KB
Description	Hex D Flip-Flop
Datasheet	MM74C174_NationalSemiconductor.pdf
Additional preview pages of the MM74C174 datasheet.

MM74C174 Product details

Description

The MM54C174 MM74C174 hex D flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors All have a direct clear input Information at the D inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock pulse Clear is independent of clock and accomplished by a low level at the clear input All inputs are protected by diodes to VCC and GND

Features

Y Y Y Y Wide supply voltage range Guaranteed noise margin High noise immunity Low power TTL compatibility 3 0V to 15V 1 0V 0 45 VCC (typ ) Fan out of 2 driving 74L Logic and Connection Diagrams TL F 5899.
2 TL F 5899.
1 TL F 5899.
3 Dual-In-Line Package Truth Table Inputs Clear L H H H Clock X D X H L X Output Q L H L Q u u L TL F 5899.
4 Top View Order Number MM54C174 or MM74C174 C1995 National Semiconductor Corporation TL F 5899 RRD-B30M105 Pri.
