NM95HS01 - (NM95HS01 / NM95HS02) HiSeC-TM High Security Rolling Code Generator

National Semiconductor

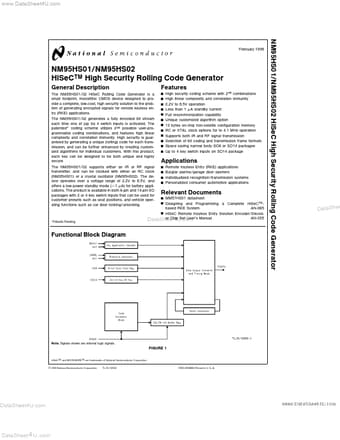

NM95HS01 Datasheet Preview — Preview of NM95HS01 PDF

Datasheet Details

Part number	NM95HS01
Manufacturer	National Semiconductor ↗
File Size	516.94 KB
Description	(NM95HS01 / NM95HS02) HiSeC-TM High Security Rolling Code Generator
Datasheet	NM95HS01_NationalSemiconductor.pdf

NM95HS01 Product details

Description

The NM95HS01 02 HiSeC Rolling Code Generator is a small footprint monolithic CMOS device designed to provide a complete low-cost high security solution to the problem of generating encrypted signals for remote keyless entry (RKE) applications The NM95HS01 02 generates a fully encoded bit stream each time one of (up to) 4 switch inputs is activated The patented coding scheme utilizes 248 possible user-programmable coding combinations and

Features

high linear complexity and correlation immunity High security is guaranteed by generating a unique (rolling) code for each transmission and can be further enhanced by creating customized algorithms for individual customers With this product each key can be designed to be both unique and highly secure The NM95HS01 02 supports either an IR or RF signal transmitter and can be clocked with either an RC clock (NM95HS01) or a crystal oscillator (NM95HS02) The device operates over a voltage range of 2.
