NB223, NB211 - 500mA medium current driver transistors

NB223 Description

aaz~..-(W) r * * * * * * * * * * * * * * *<.

NB223 Features

* [!J package and lead coding
* 35 to 65 Volt at 500 mA collector ratings
* 1.2 Watts practical power dissipation (TO-92 PLUSTM) -~azz. (,W). C'I
* 400 mV guaranteed VCE (sat) characteristics at Ic = 100 mA and IB = 2 mA
* Matched HFE groupings for complementary ap

NB223 Applications

* "Epoxy B" packaging concept for excellent reliability applications
* 4 to 6 Watt amplifier class A drivers
* Medium current level switching circuits
* LED drivers
* TV receivers rn,, maximum ratings C'I zm PARAMETER SYMBOL NB211 NB221 PACKAGE COOE TO-9

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NB223, NB211. Please refer to the document for exact specifications by model.

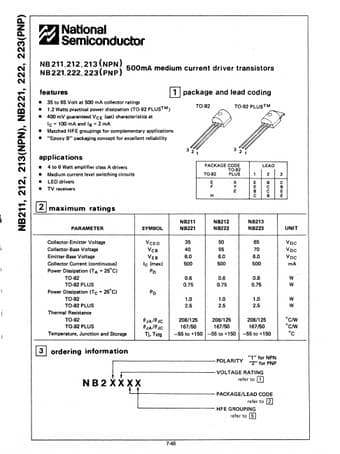

datasheet Preview Page 2 datasheet Preview Page 3
