LMX2316 - PLLatinum Low Power Frequency Synthesizer

Name: LMX2316
SKU: LMX2316-393808

National Semiconductor

📥 Download Datasheet

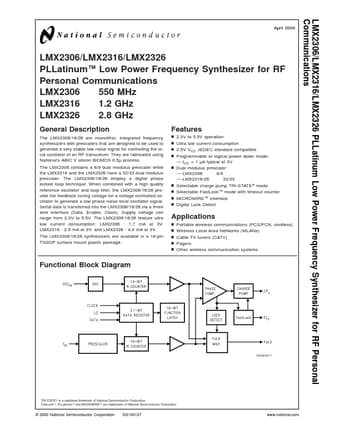

LMX2316 Datasheet Preview — Preview of LMX2316 PDF

Datasheet Details

Part number	LMX2316
Manufacturer	National Semiconductor
File Size	300.92 KB
Description	PLLatinum Low Power Frequency Synthesizer
Datasheet	LMX2316_NationalSemiconductor.pdf

LMX2316 Product details

Description

The LMX2306/16/26 are monolithic, integrated frequency synthesizers with prescalers that are designed to be used to generate a very stable low noise signal for controlling the local oscillator of an RF transceiver.

Features

n n n n n 2.3V to 5.5V operation Ultra low current consumption 2.5V VCC JEDEC standard compatible Programmable or logical power down mode:.
ICC = 1 µA typical at 3V Dual modulus prescaler:.
LMX2306 8/9.
LMX2316/26 32/33 Selectable charge pump TRI-STATE ® mode Selectable FastLock™ mode with timeout counter.
