LMH6624 - Single/Dual Ultra Low Noise Wideband Operational Amplifier

National Semiconductor

📥 Download Datasheet

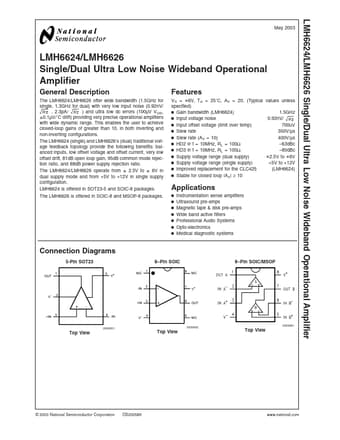

LMH6624 Datasheet Preview — Preview of LMH6624 PDF

Datasheet Details

Part number	LMH6624
Manufacturer	National Semiconductor
File Size	0.96 MB
Description	Single/Dual Ultra Low Noise Wideband Operational Amplifier
Datasheet	LMH6624_NationalSemiconductor.pdf

LMH6624 Product details

Description

The LMH6624/LMH6626 offer wide bandwidth (1.5GHz for single, 1.3GHz for dual) with very low input noise (0.92nV/ , 2.3pA/ ) and ultra low dc errors (100µV VOS, ± 0.1µV/˚C drift) providing very precise operational amplifiers with wide dynamic range.

Features

VS = ± 6V, TA = 25˚C, AV = 20, (Typical values unless specified) n Gain bandwidth (LMH6624) 1.5GHz n Input voltage noise 0.92nV/ n Input offset voltage (limit over temp) 700uV n Slew rate 350V/µs n Slew rate (AV = 10) 400V/µs n HD2 @ f = 10MHz, RL = 100Ω.
63dBc n HD3 @ f = 10MHz, RL = 100Ω.
80dBc ± 2.5V to ± 6V n Supply voltage range (dual supply) n Supply voltage range (single supply) +5V to +12V n Improved replacement for the CLC425 (LMH6624) n Stable for closed loop |AV| ≥ 10.
