LM9022 - Vacuum Fluorescent Display Filament Driver

National Semiconductor

The LM9022 by National Semiconductor is a Vacuum Fluorescent Display Filament Driver. Below is the official datasheet preview.

📥 Download Datasheet

LM9022 Vacuum Fluorescent Display Filament Driver by National Semiconductor - Datasheet Preview — Official preview page of the **LM9022** Vacuum Fluorescent Display Filament Driver datasheet (National Semiconductor).

Datasheet Details

Part number	LM9022
Manufacturer	National Semiconductor
File Size	262.26 KB
Description	Vacuum Fluorescent Display Filament Driver
Datasheet	LM9022_NationalSemiconductor.pdf

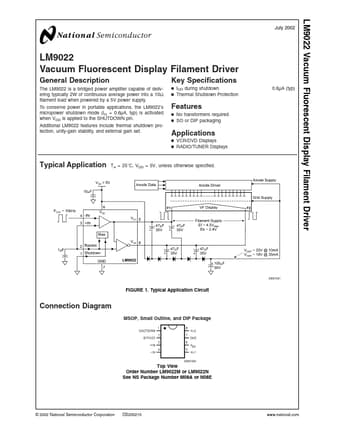

Additional preview pages of the LM9022 datasheet.

LM9022 Product details

Description

The LM9022 is a bridged power amplifier capable of delivering typically 2W of continuous average power into a 10Ω filament load when powered by a 5V power supply.

Features

include thermal shutdown protection, unity-gain stability, and external gain set. Key Specifications n IDD during shutdown n Thermal Shutdown Protection 0.6µA (typ) Features n No transformers required n SO or DIP packaging.
