LM88 - Factory Programmable Dual Remote-Diode Thermostat

Name: LM88
SKU: LM88-393169

National Semiconductor

The LM88 by National Semiconductor is a Factory Programmable Dual Remote-Diode Thermostat. Below is the official datasheet preview.

Datasheet Details

Part number	LM88
Manufacturer	National Semiconductor
File Size	196.62 KB
Description	Factory Programmable Dual Remote-Diode Thermostat
Datasheet	LM88_NationalSemiconductor.pdf

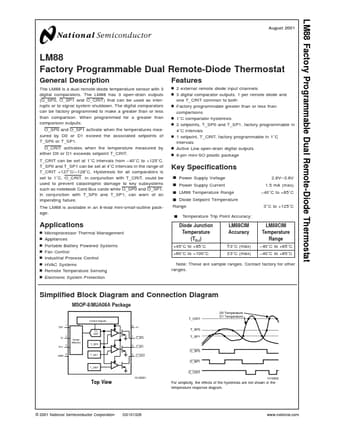

Additional preview pages of the LM88 datasheet.

The LM88 is a dual remote-diode temperature sensor with 3 digital comparators.

n 2 external remote diode input channels n 3 digital comparator outputs, 1 per remote diode and one T_CRIT common to both n Factory programmable greater than or less than comparisons n 1˚C comparator hysteresis n 2 setpoints, T_SP0 and T_SP1, factory programmable in 4˚C intervals n 1 setpoint, T_CRIT, factory programmable in 1˚C intervals n Active Low open-drain digital outputs n 8-pin mini-SO plastic package Key Specifications j Power Supply Voltage j Power Supply Current j LM88 Temperature Ra.
