LM84 - Diode Input Digital Temperature Sensor

National Semiconductor

The LM84 by National Semiconductor is a Diode Input Digital Temperature Sensor. Below is the official datasheet preview.

📥 Download Datasheet

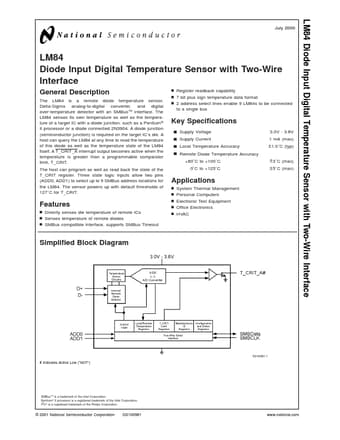

LM84 Diode Input Digital Temperature Sensor by National Semiconductor - Datasheet Preview — Official preview page of the **LM84** Diode Input Digital Temperature Sensor datasheet (National Semiconductor).

Datasheet Details

Part number	LM84
Manufacturer	National Semiconductor
File Size	160.78 KB
Description	Diode Input Digital Temperature Sensor
Datasheet	LM84_NationalSemiconductor.pdf
Additional preview pages of the LM84 datasheet.

LM84 Product details

Description

The LM84 is a remote diode temperature sensor, Delta-Sigma analog-to-digital converter, and digital over-temperature detector with an SMBus™ interface.

Features

n Directly senses die temperature of remote ICs n Senses temperature of remote diodes n SMBus compatible interface, supports SMBus Timeout n Register readback capability n 7 bit plus sign temperature data format n 2 address select lines enable 9 LM84s to be connected to a single bus Key Specifications j Supply Voltage j Supply Current j Local Temperature Accuracy j Remote Diode Temperature Accuracy +60˚C to +100˚C 0˚C to +125˚C 3.0V - 3.6V 1 mA (max) ±1.0˚C (typ) ±3˚C (max) ±5˚C (max) Applic.
