LM8364, LM8 - Micropower Undervoltage Sensing Circuits

National Semiconductor

The LM8364 by National Semiconductor is a Micropower Undervoltage Sensing Circuits. Below is the official datasheet preview.

📥 Download Datasheet

LM8364 Micropower Undervoltage Sensing Circuits by National Semiconductor - Datasheet Preview — Official preview page of the **LM8364** Micropower Undervoltage Sensing Circuits datasheet (National Semiconductor).

Datasheet Details

Part number	LM8364, LM8
Manufacturer	National Semiconductor
File Size	199.85 KB
Description	Micropower Undervoltage Sensing Circuits
Datasheet	LM8-364.pdf
Note	This datasheet PDF includes multiple part numbers: LM8364, LM8. Please refer to the document for exact specifications by model.

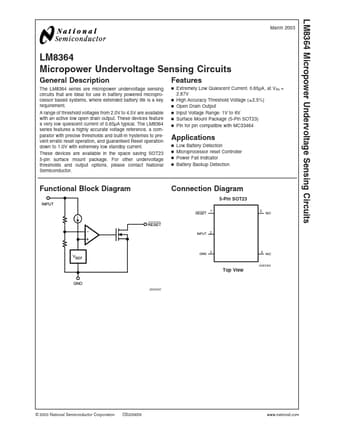

Additional preview pages of the LM8364 datasheet.

LM8364 Product details

Description

The LM8364 series are micropower undervoltage sensing circuits that are ideal for use in battery powered microprocessor based systems, where extended battery life is a key requirement.

Features

a highly accurate voltage reference, a comparator with precise thresholds and built-in hysterisis to prevent erratic reset operation, and guaranteed Reset operation down to 1.0V with extremely low standby current. These devices are available in the space saving SOT23 5-pin surface mount package. For other undervoltage thresholds and output options, please contact National Semiconductor. Features n Extremely Low Quiescent Current: 0.65µA, at VIN = 2.87V n High Accuracy Threshold Voltage ( ± 2.5%.
