LM79L12ACM, LM79L05ACM - 3-Terminal Negative Regulators

National Semiconductor

Datasheet Details

Part number	LM79L12ACM, LM79L05ACM
Manufacturer	National Semiconductor ↗
File Size	589.71 KB
Description	3-Terminal Negative Regulators
Datasheet	LM79L05ACM-NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: LM79L12ACM, LM79L05ACM. Please refer to the document for exact specifications by model.

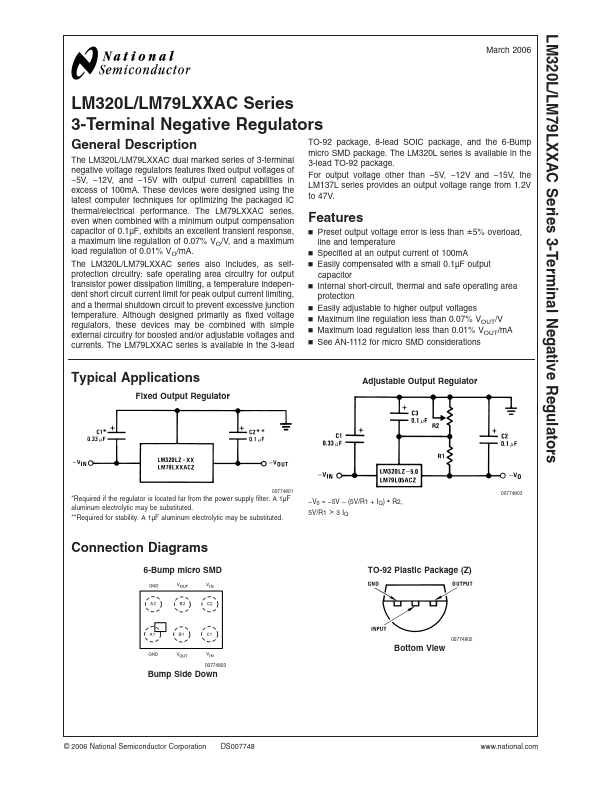

The LM320L/LM79LXXAC dual marked series of 3-terminal negative voltage regulators

fixed output voltages of.
5V,.
12V, and.
15V with output current capabilities in excess of 100mA. These devices were designed using the latest computer techniques for optimizing the packaged IC thermal/electrical performance. The LM79LXXAC series, even when combined with a minimum output compensation capacitor of 0.1µF, exhibits an excellent transient response, a maximum line regulation of 0.07% VO/V, and a maximum load regulation of 0.01% VO/mA. The LM320L/LM79LXXAC seri.
