LM78L15AC Description

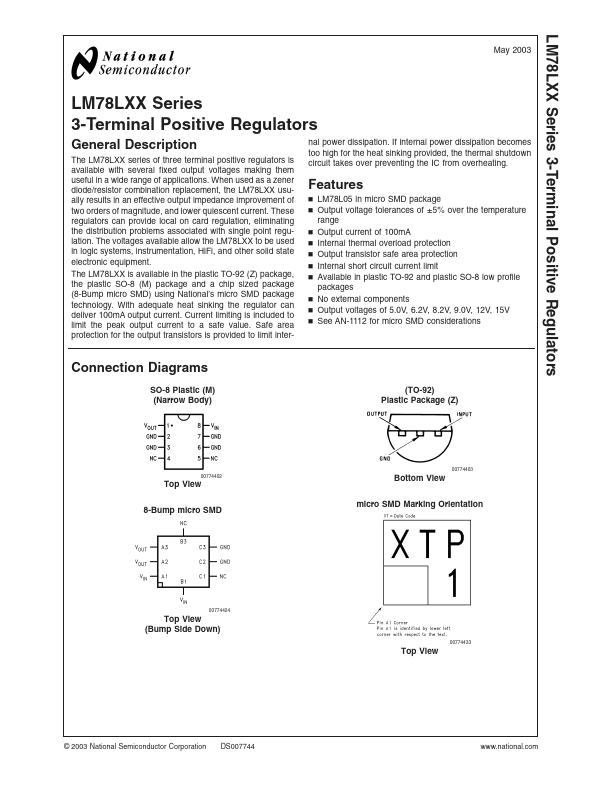

LM78LXX Series 3-Terminal Positive Regulators May 2003 LM78LXX Series 3-Terminal Positive Regulators General .LM78L15AC Features
* n LM78L05 in micro SMD package n Output voltage tolerances of ±5% over the temperature range n Output current of 100mA n Internal thermal overload protection n Output transistor safe area protection n Internal short circuit current limit n Available in plastic TO-92 and plastic SO-8 low profile packLM78L15AC Applications
* When used as a zener diode/resistor combination replacement, the LM78LXX usually results in an effective output impedance improvement of two orders of magnitude, and lower quiescent current. These regulators can provide local on card regulation, eliminating the distribution problems associated with
