LM6104 - Quad Gray Scale Current Feedback Amplifier

National Semiconductor

📥 Download Datasheet

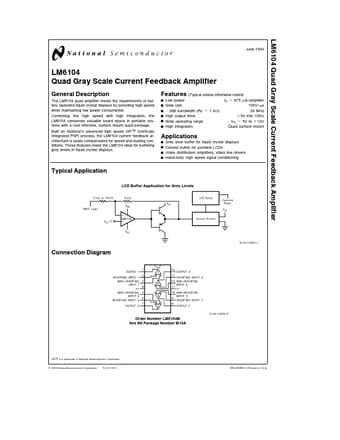

LM6104 Datasheet Preview — Preview of LM6104 PDF

Datasheet Details

Part number	LM6104
Manufacturer	National Semiconductor
File Size	118.01 KB
Description	Quad Gray Scale Current Feedback Amplifier
Datasheet	LM6104_NationalSemiconductor.pdf

LM6104 Product details

Description

The LM6104 quad amplifier meets the requirements of battery operated liquid crystal displays by providing high speed while maintaining low power consumption Combining this high speed with high integration the LM6104 conserves valuable board space in portable systems with a cost effective surface mount quad package Built on National’s advanced high speed VIPTM (Vertically Integrated PNP) process the LM6104 current feedback architecture is easily compensated for speed and loading conditions These

Features

make the LM6104 ideal for buffering grey levels in liquid crystal displays Features (Typical unless otherwise noted) Y Y Y Y Y Y Low power Slew rate b 3dB bandwidth (RF e 1 kX) High output drive Wide operating range High integration IS e 875 mA amplifier 100V ms 30 MHz g 5V into 100X VS e 5V to g 12V Quad surface mount.
