LM49250 - Enhanced Emissions Suppression Stereo Class D Audio Sub-System

National Semiconductor

Datasheet Details

Part number	LM49250
Manufacturer	National Semiconductor
File Size	1.35 MB
Description	Enhanced Emissions Suppression Stereo Class D Audio Sub-System
Datasheet	LM49250_NationalSemiconductor.pdf

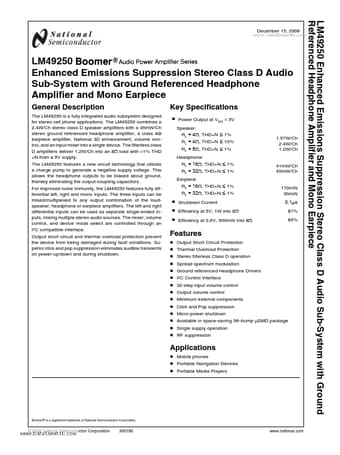

The LM49250 is a fully integrated audio subsystem designed for stereo cell phone applications.

a new circuit technology that utilizes a charge pump to generate a negative supply voltage. This allows the headphone outputs to be biased about ground, thereby eliminating the output-coupling capacitors. For improved noise immunity, the LM49250 features fully differential left, right and mono inputs. The three inputs can be mixed/multiplexed to any output combination of the loudspeaker, headphone or earpiece amplifiers. The left and right differential inputs can be used as separate single-ended.
