LM4870 - 1.1W Audio Power Amplifier

Name: LM4870
SKU: LM4870-53335

National Semiconductor

📥 Download Datasheet

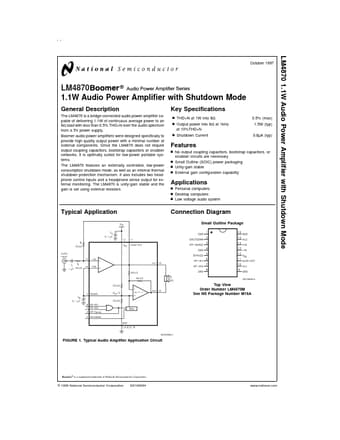

LM4870 Datasheet Preview — Preview of LM4870 PDF

Datasheet Details

Part number	LM4870
Manufacturer	National Semiconductor
File Size	259.68 KB
Description	1.1W Audio Power Amplifier
Datasheet	LM4870_NationalSemiconductor.pdf

LM4870 Product details

Description

The LM4870 is a bridge-connected audio power amplifier capable of delivering 1.1W of continuous average power to an 8Ω load with less than 0.5% THD+N over the audio spectrum from a 5V power supply.

Features

an externally controlled, low-power consumption shutdown mode, as well as an internal thermal shutdown protection mechanism. It also includes two headphone control inputs and a headphone sense output for external monitoring. The LM4870 is unity-gain stable and the gain is set using external resistors. Key Specifications n THD+N at 1W into 8Ω n Output power into 8Ω at 1kHz at 10%THD+N n Shutdown Current 0.5% (max) 1.5W (typ) 0.6µA (typ) Features n No output coupling capacitors, bootstrap capaci.
