LM4130 - Precision Micropower Low Dropout Voltage Reference

Name: LM4130
SKU: LM4130-53002

National Semiconductor

📥 Download Datasheet

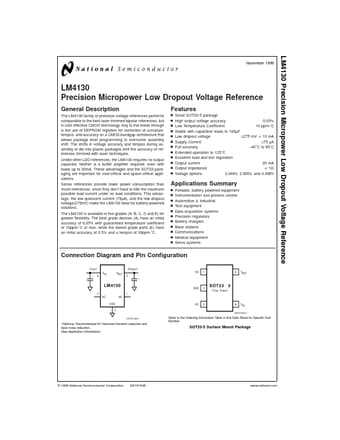

LM4130 Datasheet Preview — Preview of LM4130 PDF

Datasheet Details

Part number	LM4130
Manufacturer	National Semiconductor
File Size	264.51 KB
Description	Precision Micropower Low Dropout Voltage Reference
Datasheet	LM4130_NationalSemiconductor.pdf

LM4130 Product details

Description

The LM4130 family of precision voltage references performs comparable to the best laser-trimmed bipolar references, but in cost effective CMOS technology.

Features

n n n n n n n n n n n n Small SOT23-5 package High output voltage accuracy 0.05% Low Temperature Coefficient 10 ppm/˚C Stable with capacitive loads to 100µF Low dropout voltage ≤275 mV @ 10 mA Supply Current ≤75 µA Full accuracy.
40˚C to 85˚C Extended operation to 125˚C Excellent load and line regulation Output current 20 mA < 1Ω Output impedance Voltage options: 2.048V, 2.500V, and 4.096V.
