LM381A, LM381 - LM381/LM381A Low Noise Dual Preamplifier

National Semiconductor

📥 Download Datasheet

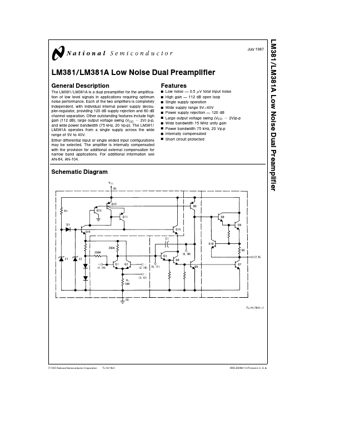

LM381A Datasheet Preview — This datasheet PDF includes multiple part numbers: LM381A, LM381. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	LM381A, LM381
Manufacturer	National Semiconductor
File Size	130.40 KB
Description	LM381/LM381A Low Noise Dual Preamplifier
Datasheet	LM381_NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: LM381A, LM381. Please refer to the document for exact specifications by model.

LM381A Product details

Description

The LM381 LM381A is a dual preamplifier for the amplification of low level signals in applications requiring optimum noise performance Each of the two amplifiers is completely independent with individual internal power supply decoupler-regulator providing 120 dB supply rejection and 60 dB channel separation Other outstanding

Features

include high gain (112 dB) large output voltage swing (VCC b 2V) p-p and wide power bandwidth (75 kHz 20 Vp-p) The LM381 LM381A operates from a single supply across the wide range of 9V to 40V Either differential input or single ended input configurations may be selected The amplifier is internally compensated with the provision for additional external compensation for narrow band.
