Description

The LM3710/LM3711 series of microprocessor supervisory circuits provide the maximum flexibility for monitoring power supplies and battery controlled functions in systems without backup batteries.

The LM3710/LM3711 series are available in MSOP-10 and 9-bump micro SMD packages.

Features

  • include the following: Reset: Reset is asserted during power-up, power-down, and brownout conditions. RESET is guaranteed down to VCC of 1.0V. Manual Reset Input: An input that asserts reset when pulled low. Power-Fail Input: A 1.225V threshold detector for power fail warning, or to monitor a power supply other than VCC. Low Line Output: This early power failure warning indicator goes low when the supply voltage drops to a value which is 2% higher than the reset threshold voltage. Watchdog Timer.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM3-710.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LM3710 Microprocessor Supervisory Circuits Texas Instruments
LM37100 1A Low-Voltage Low-Dropout Regulator HTC Korea
LM37101 1A Low-Voltage Low-Dropout Regulator HTC Korea
LM37102 1A Low-Voltage Low-Dropout Regulator HTC Korea
LM37102C 1A Low-Voltage Low-Dropout Regulator HTC

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
LM3711 Microprocessor Supervisory
LM3712 Microprocessor Supervisory Circuits
LM3713 Microprocessor Supervisory Circuits
LM3700 Microprocessor Supervisor
LM3701 Microprocessor Supervisor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

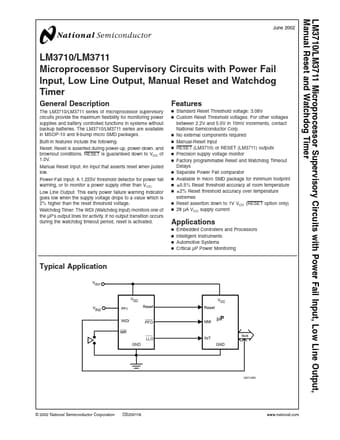

LM3710/LM3711 Microprocessor Supervisory Circuits with Power Fail Input, Low Line Output, Manual Reset and Watchdog Timer June 2002 LM3710/LM3711 Microprocessor Supervisory Circuits with Power Fail Input, Low Line Output, Manual Reset and Watchdog Timer General Description The LM3710/LM3711 series of microprocessor supervisory circuits provide the maximum flexibility for monitoring power supplies and battery controlled functions in systems without backup batteries. The LM3710/LM3711 series are available in MSOP-10 and 9-bump micro SMD packages. Built-in features include the following: Reset: Reset is asserted during power-up, power-down, and brownout conditions. RESET is guaranteed down to VCC of 1.0V. Manual Reset Input: An input that asserts reset when pulled low.
