LM334 - 3-Terminal Adjustable Current Sources

National Semiconductor

The LM334 by National Semiconductor is a 3-Terminal Adjustable Current Sources. Below is the official datasheet preview.

📥 Download Datasheet

LM334 3-Terminal Adjustable Current Sources by National Semiconductor - Datasheet Preview — Official preview page of the **LM334** 3-Terminal Adjustable Current Sources datasheet (National Semiconductor).

Datasheet Details

Part number	LM334
Manufacturer	National Semiconductor
File Size	273.64 KB
Description	3-Terminal Adjustable Current Sources
Datasheet	LM334_NationalSemiconductor.pdf
Additional preview pages of the LM334 datasheet.

LM334 Product details

Description

The LM134/LM234/LM334 are 3-terminal adjustable current sources featuring 10,000:1 range in operating current, excellent current regulation and a wide dynamic voltage range of 1V to 40V.

Features

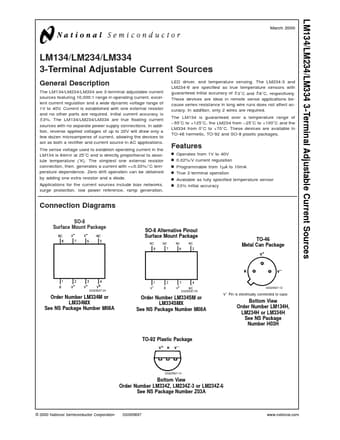

n n n n n n Operates from 1V to 40V 0.02%/V current regulation Programmable from 1µA to 10mA True 2-terminal operation Available as fully specified temperature sensor ± 3% initial accuracy Connection Diagrams SO-8 Surface Mount Package SO-8 Alternative Pinout Surface Mount Package TO-46 Metal Can Package DS005697-24 DS005697-12 DS005697-25 Order Number LM334M or LM334MX See NS Package Number M08A Order Number LM334SM or LM334SMX See NS Package Number M08A V.
Pin is electrically c.
