LM320L 3-Terminal Negative Regulators

National Semiconductor

Description

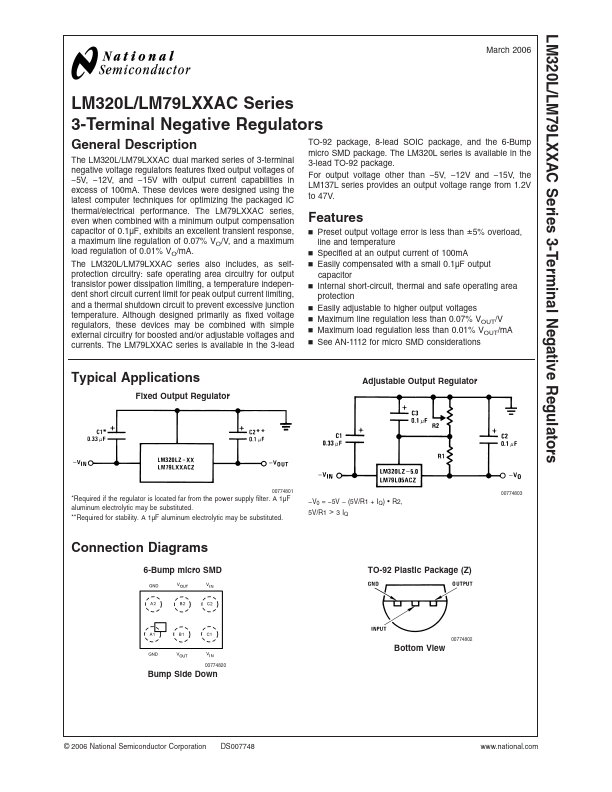

LM320L/LM79LXXAC Series 3-Terminal Negative Regulators March 2006 LM320L/LM79LXXAC Series 3-Terminal Negative Regulators General .
The LM320L/LM79LXXAC dual marked series of 3-terminal negative voltage regulators features fixed output voltages of. 5V,. 12V, and.

📥 Download Datasheet

LM320L Datasheet Preview — Preview of LM320L PDF

Datasheet Specifications

Part number: LM320L
Manufacturer: National Semiconductor
File Size: 595.91 KB
Datasheet: LM320L-NationalSemiconductor.pdf
Description: 3-Terminal Negative Regulators

Features

* fixed output voltages of
* 5V,
* 12V, and
* 15V with output current capabilities in excess of 100mA. These devices were designed using the latest computer techniques for optimizing the packaged IC thermal/electrical performance. The LM79LXXAC series, even when combined with a mi

Applications

* Fixed Output Regulator Adjustable Output Regulator 00774801
* Required if the regulator is located far from the power supply filter. A 1µF aluminum electrolytic may be substituted.
* Required for stability. A 1µF aluminum electrolytic may be substituted.
* V0 =
* 5V
