LM161 - High Speed Differential Comparators

Name: LM161
SKU: LM161-64094

National Semiconductor

📥 Download Datasheet

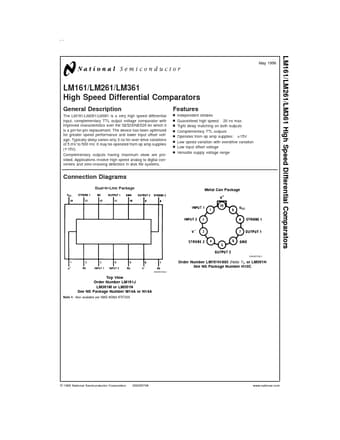

LM161 Datasheet Preview — Preview of LM161 PDF

Datasheet Details

Part number	LM161
Manufacturer	National Semiconductor
File Size	271.15 KB
Description	High Speed Differential Comparators
Datasheet	LM161_NationalSemiconductor.pdf

LM161 Product details

Description

The LM161/LM261/LM361 is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the SE529/NE529 for which it is a pin-for-pin replacement.

Features

n n n n n n n n Independent strobes Guaranteed high speed: 20 ns max Tight delay matching on both outputs Complementary TTL outputs Operates from op amp supplies: ± 15V Low speed variation with overdrive variation Low input offset voltage Versatile supply voltage range Connection Diagrams Dual-In-Line Package Metal Can Package DS005708-3 Order Number LM161H/883 (Note 1), or LM361H See NS Package Number H10C DS005708-2 Top View Order Number LM161J LM361M or LM361N See NS Package Number M14A o.
