LM150 - 3-Amp Adjustable Regulators

National Semiconductor

LM150 Datasheet Preview — Preview of LM150 PDF

Datasheet Details

Part number	LM150
Manufacturer	National Semiconductor ↗
File Size	226.23 KB
Description	3-Amp Adjustable Regulators
Datasheet	LM150-NationalSemiconductor.pdf

LM150 Product details

Description

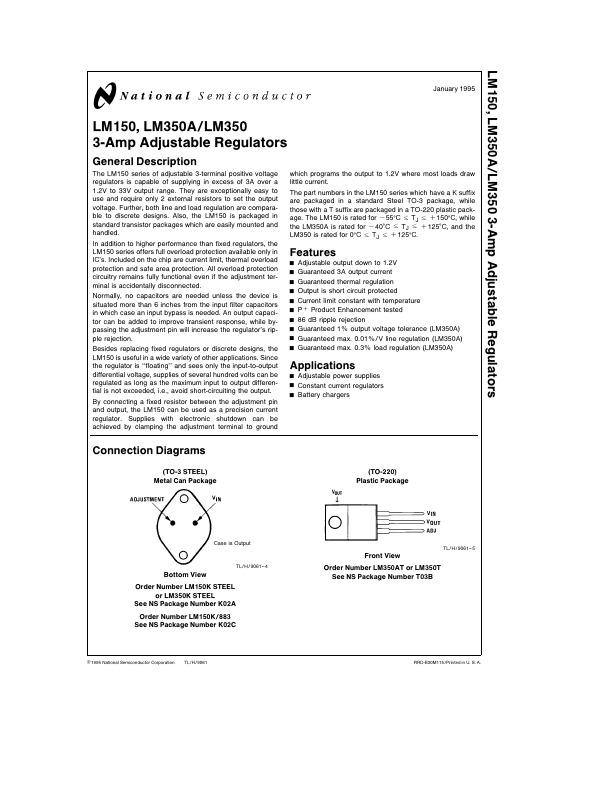

The LM150 series of adjustable 3-terminal positive voltage regulators is capable of supplying in excess of 3A over a 1 2V to 33V output range They are exceptionally easy to use and require only 2 external resistors to set the output voltage Further both line and load regulation are comparable to discrete designs Also the LM150 is packaged in standard transistor packages which are easily mounted and handled In addition to higher performance than fixed regulators the LM150 series offers full overl

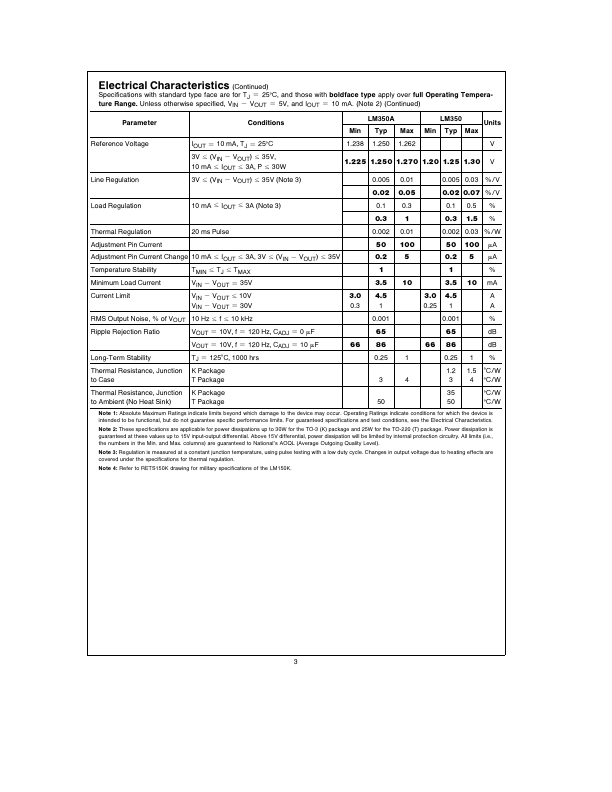

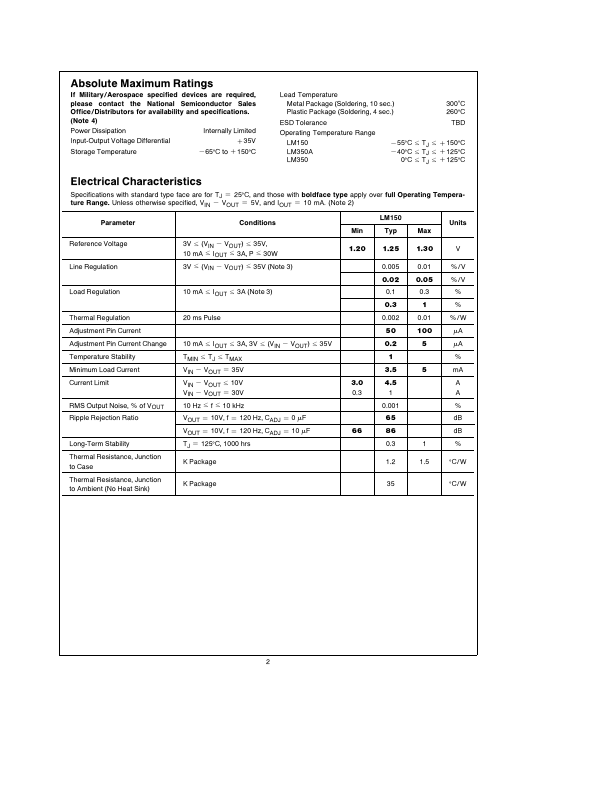

Features

Y Adjustable output down to 1 2V Y Guaranteed 3A output current Y Guaranteed thermal regulation Y Output is short circuit protected Y Current limit constant with temperature Y Pa Product Enhancement tested Y 86 dB ripple rejection Y Guaranteed 1% output voltage tolerance (LM350A) Y Guaranteed max 0 01% V line regulation (LM350A) Y Guaranteed max 0 3% load regulation (LM350A).
