LM140L - 3-Terminal Positive Regulators

National Semiconductor

📥 Download Datasheet

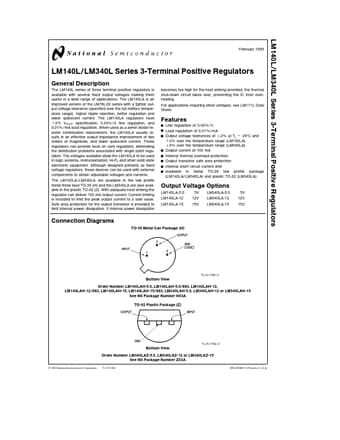

LM140L Datasheet Preview — Preview of LM140L PDF

Datasheet Details

Part number	LM140L
Manufacturer	National Semiconductor
File Size	143.61 KB
Description	3-Terminal Positive Regulators
Datasheet	LM140L_NationalSemiconductor.pdf

LM140L Product details

Description

The LM140L series of three terminal positive regulators is available with several fixed output voltages making them useful in a wide range of applications The LM140LA is an improved version of the LM78LXX series with a tighter output voltage tolerance (specified over the full military temperature range) higher ripple rejection better regulation and lower quiescent current The LM140LA regulators have g 2% VOUT specification 0 04% V line regulation and 0 01% mA load regulation When used as a zener

Features

Y Y Y Y Y Y Y Y Line regulation of 0 04% V Load regulation of 0 01% mA Output voltage tolerances of g 2% at Tj e 25 C and g 4% over the temperature range (LM140LA) g 3% over the temperature range (LM340LA) Output current of 100 mA Internal thermal overload protection Output transistor safe area protection Internal short circuit current limit Available in metal TO-39 low profile package (LM140LA LM340LA) and plastic TO-92 (LM340LA) Output Voltage Options LM140LA-5 0 LM140LA-12 LM140LA-15 5V 12.
