LM1117 - 800mA Low-Dropout Linear Regulator

Download the LM1117 datasheet PDF. This datasheet also covers the LM1 variant, as both devices belong to the same 800ma low-dropout linear regulator family and are provided as variant models within a single manufacturer datasheet.

Description

The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current.

It has the same pin-out as National Semiconductor’s industry standard LM317.

Features

  • n Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions n Space Saving SOT-223 and LLP Packages n Current Limiting and Thermal Protection n Output Current 800mA n Line Regulation 0.2% (Max) n Load Regulation 0.4% (Max) n Temperature Range.
  • LM1117 0˚C to 125˚C.
  • LM1117I.
  • 40˚C to 125˚C.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM1-117.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LM1117 Positive Low Dropout Linear Regulator AP Semiconductor
LM1117 1A L.D.O VOLTAGE REGULATOR HTC
LM1117 1A Low Dropout Positive Voltage Regulator CYStech Electronics
LM1117 800-mA Low-Dropout Linear Regulator Texas Instruments
LM1117 800mA Low-Dropout Linear Regulator ON Semiconductor

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
LM1117I 800mA Low-Dropout Linear Regulator
LM111 Voltage Comparator
LM1112 Dolby B-Type Noise Reduction Processor
LM1112A Dolby B-Type Noise Reduction Processor
LM1112B Dolby B-Type Noise Reduction Processor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

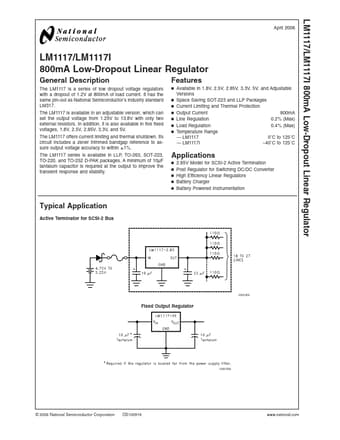

LM1117/LM1117I 800mA Low-Dropout Linear Regulator April 2006 LM1117/LM1117I 800mA Low-Dropout Linear Regulator General Description The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. The LM1117 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V. The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. The LM1117 series is available in LLP, TO-263, SOT-223, TO-220, and TO-252 D-PAK packages.
