LH0005 - Operational Amplifier

National Semiconductor

The LH0005 by National Semiconductor is a Operational Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

LH0005 Operational Amplifier by National Semiconductor - Datasheet Preview — Official preview page of the **LH0005** Operational Amplifier datasheet (National Semiconductor).

Datasheet Details

Part number	LH0005
Manufacturer	National Semiconductor
File Size	131.01 KB
Description	Operational Amplifier
Datasheet	LH0005-NationalSemiconductor.pdf

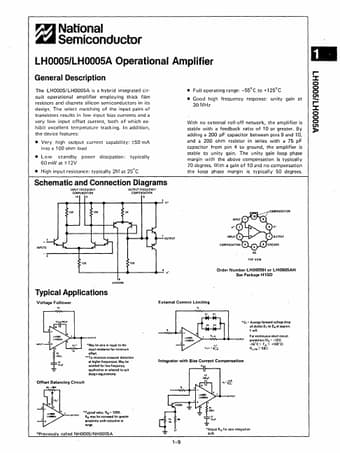

Additional preview pages of the LH0005 datasheet.

LH0005 Product details

Description

The LH0005/LH0005A is a hybrid integrated circuit operational amplifier employing thick film resistors and discrete silicon semiconductors in its design_ The select matching of the input pairs of transistors results in low input bias currents and a very low input offset current, both of which exhibit excellent temperature tracking.

Features

Very high output current capability: ±50 mA into a 100 ohm load.
Low standby power dissipation: typically 60 mW at ±12V.
High input resistance: typically 2M at 25°C Schematic and Connection Diagrams INPUT.
