INS8208 - 8-Bit Bidirectional Transceiver

National Semiconductor

Datasheet Details

Part number	INS8208
Manufacturer	National Semiconductor
File Size	353.93 KB
Description	8-Bit Bidirectional Transceiver
Datasheet	INS8208-NationalSemiconductor.pdf

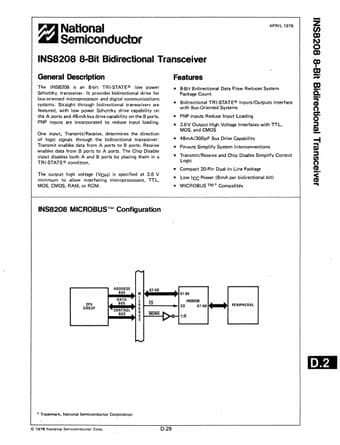

APRIL 1978 -ez n (X) No (X) cp ;t:o:;: The INS8208 is an 8-bit TRI-STATE® low power Schottky transceiver. It provides bidirectional drive for bus-oriented microprocessor and digital communications systems. Straight through bidirectional transceivers are featured, with low power Schottky drive capability on the A ports and 48mA bus drive capability on the B ports. PNP inputs are incorporated to reduce input loading. One input, Transmit/Receive, determines the direction of logic signals th.
