DSV14196WM - +3.3V Supply EIA/TIA-232 5 Driver x 3 Receiver

Product Overview

National Semiconductor

Part number	DSV14196WM
Manufacturer	National Semiconductor
File Size	153.49 KB
Description	+3.3V Supply EIA/TIA-232 5 Driver x 3 Receiver
Datasheet	DSV14196WM Datasheet

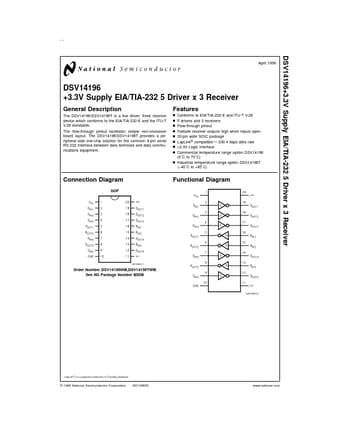

Additional preview pages of the DSV14196WM datasheet.

The DSV14196/DSV14196T is a five driver, three receiver device which conforms to the EIA/TIA-232-E and the ITU-T V.28 standards.

Conforms to EIA/TIA-232-E and ITU-T V.28 5 drivers and 3 receivers Flow-through pinout Failsafe receiver outputs high when inputs open 20-pin wide SOIC package LapLink ® compatible.
230.4 kbps data rate +3.3V Logic Interface Commercial temperature range option DSV14196 (0˚C to 70˚C) n Industrial temperature range option DSV14196T (.
40˚C to +85˚C) n n n n n n n n Connection Diagram SOP Functional Diagram DS100853-1 Order Number DSV14196WM,DSV14196TWM See NS Package Number M20.
