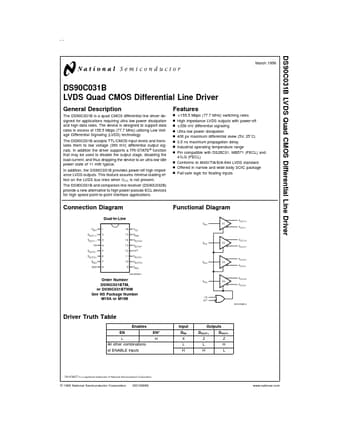

DS90C031B - LVDS Quad CMOS Differential Line Driver

National Semiconductor

Datasheet Details

Part number	DS90C031B
Manufacturer	National Semiconductor
File Size	253.45 KB
Description	LVDS Quad CMOS Differential Line Driver
Datasheet	DS90C031B_NationalSemiconductor.pdf

The DS90C031B is a quad CMOS differential line driver designed for applications requiring ultra low power dissipation and high data rates.

n n n n n n n n > 155.5 Mbps (77.7 MHz) switching rates High impedance LVDS outputs with power-off ± 350 mV differential signaling Ultra low power dissipation 400 ps maximum differential skew (5V, 25˚C) 3.5 ns maximum propagation delay Industrial operating temperature range Pin compatible with DS26C31, MB571 (PECL) and 41LG (PECL) n Conforms to ANSI/TIA/EIA-644 LVDS standard n Offered in narrow and wide body SOIC package n Fail-safe logic for floating inputs Connection Diagram Dual-In-Line Fu.
