DS8921AT - Differential Line Driver and Receiver Pair

Download the DS8921AT datasheet PDF. This datasheet also covers the DS8921A variant, as both devices belong to the same differential line driver and receiver pair family and are provided as variant models within a single manufacturer datasheet.

Description

The DS8921, DS8921A are Differential Line Driver and Receiver pairs designed specifically for applications meeting the ST506, ST412 and ESDI Disk Drive Standards.

In addition, these devices meet the requirements of the EIA Standard RS-422.

Features

  • n 12 ns typical propagation delay n Output skew.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DS8921A_NationalSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DS8924 Quad Tri-State Differential Line Driver National
DS89C21 DS89C21 Differential CMOS Line Driver and Receiver Pair (Rev. C) ETCTI
DS89C420 Ultra-High-Speed Microcontroller Dallas Semiconducotr
DS89C430 Ultra-High-Speed Flash Microcontrollers Maxim Integrated
DS89C440 Ultra-High-Speed Flash Microcontrollers Dallas Semiconducotr

Other Datasheets by National Semiconductor (Texas Instruments)

Part Number Description
DS8921A Differential Line Driver and Receiver Pair
DS8921 Differential Line Driver and Receiver Pair
DS8922 TRI-STATE RS-422 Dual Differential Line Driver and Receiver Pairs
DS8922A RS-422 Dual Differential Line Driver and Receiver Pairs
DS8923A RS-422 Dual Differential Line Driver and Receiver Pairs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

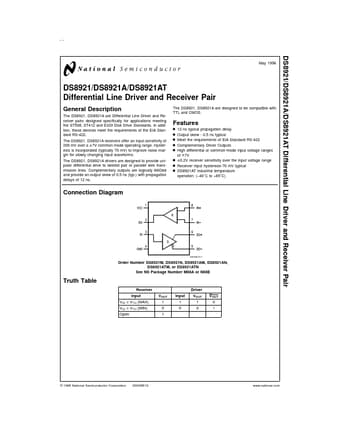

DS8921/DS8921A/DS8921AT Differential Line Driver and Receiver Pair May 1998 DS8921/DS8921A/DS8921AT Differential Line Driver and Receiver Pair General Description The DS8921, DS8921A are Differential Line Driver and Receiver pairs designed specifically for applications meeting the ST506, ST412 and ESDI Disk Drive Standards. In addition, these devices meet the requirements of the EIA Standard RS-422. The DS8921, DS8921A receivers offer an input sensitivity of 200 mV over a ±7V common mode operating range. Hysteresis is incorporated (typically 70 mV) to improve noise margin for slowly changing input waveforms. The DS8921, DS8921A drivers are designed to provide unipolar differential drive to twisted pair or parallel wire transmission lines.
