The DS8884A is designed to decode four lines of BCD input and drive seven-segment digits of gas-filled readout displays All outputs consist of switchable and programmable current sinks which provide constant current to the tube cathodes even with high tube anode supply tolerance Output currents may
Features
Y Y Y Y Y Y Y
Usable with AC or DC input coupling Current sink outputs High output breakdown voltage Low input load current Intended for multiplex operation Input pullups increase noise immunity Comma d pt drive
Connection Diagram
Dual-In-Line Package
TL F 5847.
2
Top View Order Number DS8884AN See NS Package Number N18A
C1995 National Semiconductor Corporation
TL F 5847
RRD-B30M105 Printed in U S A
Absolute Maximum Ratings
(Note 1) Storage Temperature Range Maximum Power Dissi.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

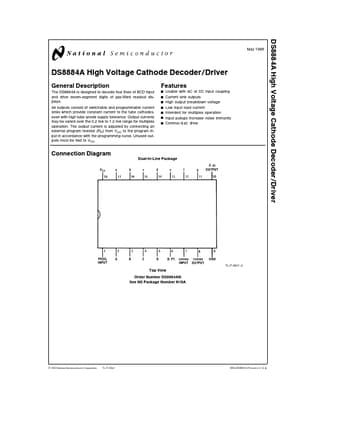

DS8884A High Voltage Cathode Decoder Driver
May 1986
DS8884A High Voltage Cathode Decoder Driver
General Description
The DS8884A is designed to decode four lines of BCD input and drive seven-segment digits of gas-filled readout displays All outputs consist of switchable and programmable current sinks which provide constant current to the tube cathodes even with high tube anode supply tolerance Output currents may be varied over the 0 2 mA to 1 2 mA range for multiplex operation The output current is adjusted by connecting an external program resistor (RP) from VCC to the program input in accordance with the programming curve Unused outputs must be tied to VCC
Features
Y Y Y Y Y Y Y
Usable with AC or DC input coupling Current sink outputs High output breakdown voltage Low input load cur
